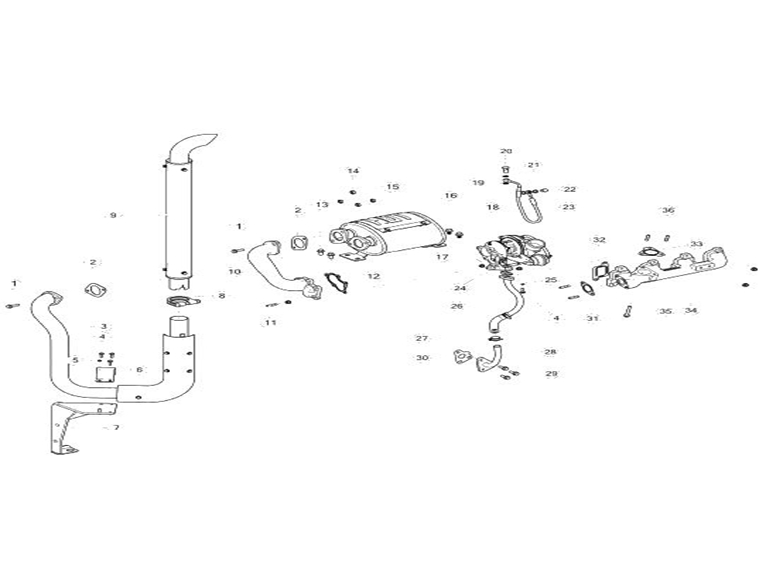

Modelo 60754WD Diagrama Exhaust System

1	000020306E05	BOLT Flanged - M8 x 1.25 x 30
2	006026948C1	EXHAUST PIPE GASKET DCEMJO GPH
3	008011915U11	PIPE Stub
4	000020312E05	BOLT M6x20
5	001233807R1	NUT M6 x 1 Hex.
6	006018657C1	SUPPORT Clamp Stub pipe
7	006028960U12	BRACKET Stub Pipe
8	006021689C1	CLAMP for Ex. System
9	008012345U91	PIPE Tail With Guard
10	006024084C1	ELBOW Turbo charger To UHM
11	006000823F1	STUD Turbocharger Mounting M8 x 23
12	006013846F1	GASKET Turbocharger Outlet (4 Cylinder)
13	000020565E05	BOLT Flanged Hex Head M10 x 1.5 x 20
14	Ą	Not Serviceable Separately
15	008005800C11	MUFFLER OHV
16	000020324E05	BOLT M10 x 16 Bracket Water Separator Mounting
17	006000856F1	NUT Flanged M8 x 1.25
18	006023747C1	TURBOCHARGER 75 HP (96X132)
19	000020695E05	WASHER Plain M12
20	006000331F1	BANJO BOLT M12 - Rotary FIP
21	006009551F1	WASHER M10 Temp. Sensor KSB
22	001081723R1	BOLT Banjo M10x1.0x19.3
23	006013503F1	PIPE Turbo Supply 4cyl
24	0303EM0020N	GASKET Turbocharger Drain
25	001233808R1	WASHER Spring
26	006025863C1	PIPE Turbo Drain
27	SF0705038	CLAMP Spring Band 22X12X1.3
28	006019813C1	PIPE Turbo Drain CC END
29	000020309E05	BOLT Flanged Hex. Head M8 x 25
31	006003982C1	GASKET EGR Pipe
32	006000264F1	GASKET Exhaust Manifold
33	006026948C1	EXHAUST PIPE GASKET DCEMJO GPH
34	006025861C1	MANIFOLD Exhaust (25dia.Egr Outlet)
35	SF0102298	BOLT HEX FL M8X1.25X60X8.8
36	006000823F1	STUD Turbocharger Mounting M8 x 23
