Modelo 60754WD

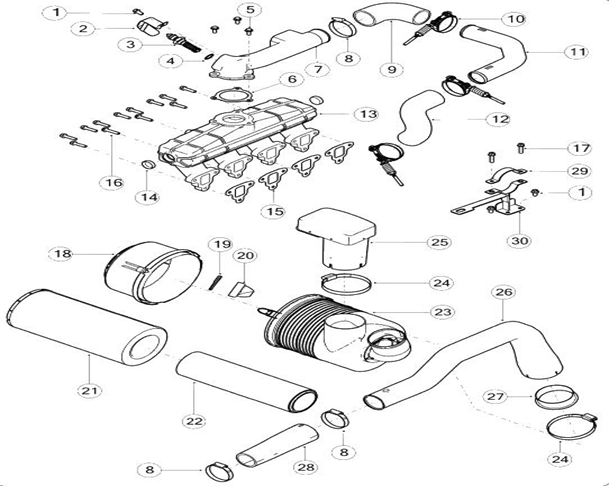

Diagrama Air Intake System
| 1 | 000020308E05 | BOLT M8 x 16 |
| 2 | 006010067D1 | CAP Heater |
| 3 | 005558187R1 | MANIFOLD Heater |
| 4 | 000020291E05 | WASHER for Manifold Heater |
| 5 | 000020307E05 | BOLT M8 x 20 |
| 6 | 006000651F1 | GASKET Between CPI Intake Manifold |
| 7 | 006024086C1 | PIPE Intake Manifold Elbow |
| 8 | 006004798F1 | CLIP Hose 80mm |
| 9 | 006100007C1 | HOSE Intake Elbow Inlet |
| 10 | 006000631F1 | CLAMP Constant Pressure (Medium) |
| 11 | 006100008C1 | PIPE Between Hose Elbow TC |
| 12 | 006027410C1 | HOSE Turbocharger Outlet |
| 13 | 006051336C91 | MANIFOLD Intake |
| 14 | 006010857H1 | PLUG Intake Manifold |
| 15 | 006004351F1 | GASKET Intake Manifold Mounting |
| 16 | 000020253E05 | BOLT Flanged Hex. Head M8 x 1.25 x 35 |
| 17 | 000020312E05 | BOLT M6x20 |
| 18 | ¡ | Not Serviceable Separately |
| 19 | 006000492F1 | CLIP Dust Unloader |
| 20 | 006000490F1 | DUST Unloader |
| 21 | 006011940C1 | PRIMARY Element |
| 22 | 006011941C1 | SAFETY Element |
| 23 | ¡ | Not Serviceable Separately |
| 24 | 006000629F1 | CLIP Worm AC Side 102 Dia |
| 25 | 006018656C1 | CAP Rain |
| 26 | 006017949C1 | DUCT Air Intake |
| 27 | 006020145C1 | SEALING Rubber Air Dict |
| 28 | 006019473C91 | HOSE Assy Turbo Inlet |
| 29 | 006015853C1 | CLAMP top - pipe AC to TC |
| 30 | 007611253C1 | BRACKET Support TC To Venturi |
| * | 006051332C91 | PIPE Intake Elbow to Turbocharger |
| * | 006051336C91 | MANIFOLD Intake |
| * | 006018741C1 | AIRCLEANER Assembly |
