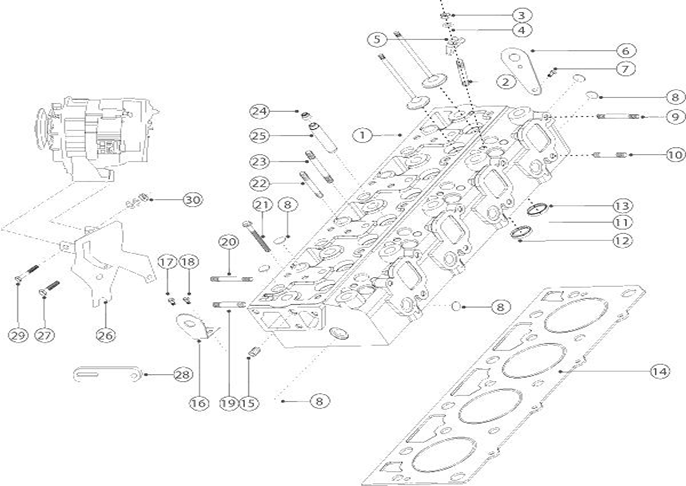

Modelo 60754WD Diagrama Cylinder Head Assembly

1	¡	Not Serviceable Separately
2	000020266E05	STUD M8 x 1.25 x 45
3	000020777E05	NUT Flanged M8
4	000020289E05	WASHER - Clamp Nozzle Holder
5	000020571E05	CLAMP Nozzle Holder
6	006002380F1	BRACKET Engine Lifting Rear
7	000020308E05	BOLT M8 x 16
8	000020299E05	PLUG Expansion 30 x 2.0 x 42
9	006002649F1	STUD Turbocharger to Metallic Pipe M8 x 28
10	006002649F1	STUD Turbocharger to Metallic Pipe M8 x 28
12	000020052E05	RING VALVE SEAT Exhaust
13	000020069E05	RING VALVE SEAT Intake
14	006000798F2	GASKET Cylinder Head
15	000020786E05	PLUG Hex. M10 x 1.0
16	006000831F1	EYE Lifting “ Front
17	000020565E05	BOLT Flanged Hex Head M10 x 1.5 x 20
18	000020313E05	BOLT Flanged Hex. Head M10 x 1.5 x 25
19	000020266E05	STUD M8 x 1.25 x 45
20	006000662F1	STUD M8 x 1.25 x 80 Grade 10.9
21	006018118C1	BOLT M14 Cylinder Head Mounting
22	006000659F1	STUD for Pedestal Rocker Arm M8 x 1.25 x 70
23	006000662F1	STUD M8 x 1.25 x 80 Grade 10.9
24	000020345E05	VALVE Stem Seal
25	000020024E05	GUIDE Valve
25	000020024E05	GUIDE Valve
26	006005530D1	BRACKET Alternator Mounting
27	000020586E05	BOLT Hex. M10 x 1.5 x 100
28	006000792F1	BRACKET Tensioner
29	000020314E05	BOLT M10 x 35
30	000022055RD	NUT M10 x 1.5
*	006013565C92	HEAD Cylinder Cpte. (W/O Valves)
*	006024120C91	HEAD Cylinder Assy
