Modelo 60754WD

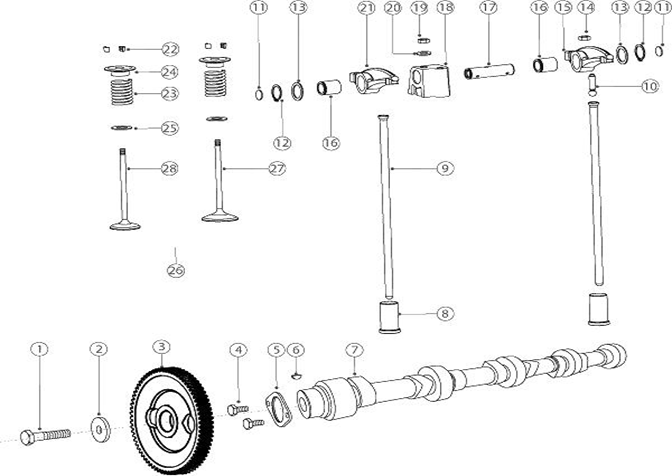

Diagrama Valve Train
| 1 | 000020304E05 | FLANGED HEX. HEAD BOLT M12 X 1.75 |
| 2 | 006003400C2 | WASHER CAMSHAFT BOLT |
| 3 | 006013744C1 | CAM_SHAFT_GEAR_FOR_MSTAR |
| 4 | 000020307E05 | BOLT M8 x 20 |
| 5 | 006013515C1 | THRUST PLATE M STAR |
| 6 | 000020270E05 | KEY Woodruff |
| 7 | 006004543F1 | EXTENDED Camshaft |
| 8 | 006002300D1 | TAPPET |
| 9 | 000021602E11 | PUSH ROD Valve |
| 10 | 000020062E05 | SCREW Adjusting |
| 11 | ¡ | Not Serviceable Separately |
| 12 | 000022034RD | RING Seeger |
| 13 | 000020431E05 | RING Seeger Shim |
| 14 | 000020796E05 | NUT M8 x 1 |
| 15 | 000020843E05 | ROCKER ARM INTAKE Assembly consists of |
| 16 | 000020341E05 | BUSH For Rocker Arm |
| 17 | 000020064E05 | SHAFT Rocker Arm |
| 18 | 000020031E05 | PEDESTAL Rocker Arm |
| 19 | 006000663F1 | NUT Flanged - M8 |
| 20 | 000020249E05 | WASHER Plain |
| 21 | 000020844E05 | ROCKER ARM EXHAUST Assembly consists of |
| 22 | 006000002F1 | VALVE LOCK - Half |
| 23 | 005557570R1 | VALVE SPRING - STIFFENED |
| 24 | 006000077F1 | RETAINER Upper for Valve Spring |
| 25 | 000020562E05 | WASHER Lower - Valve Spring Retainer |
| 26 | 006033743U91 | VALVE Set |
| 27 | 006000520F1 | VALVE Intake |
| 28 | 006005214F1 | VALVE Exhaust |
| * | 000020172E05 | ARM ROCKER Complete Consists of : |
