Modelo 60754WD

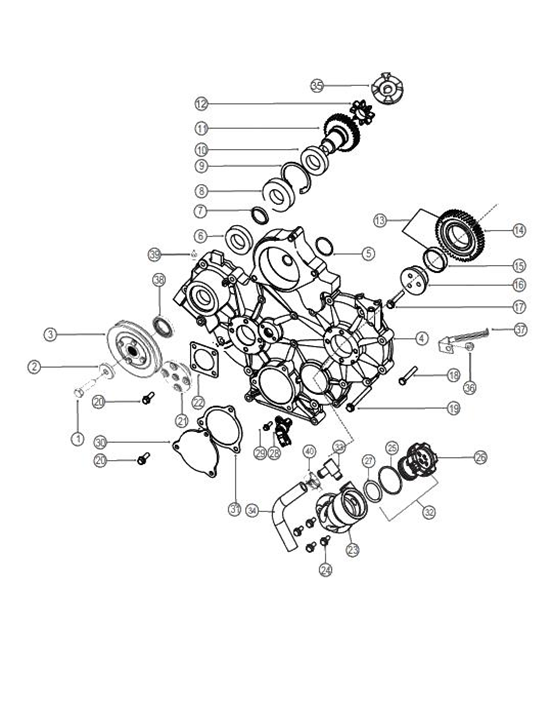

Diagrama Crankcase Front Cover
| 1 | 006005215B1 | BOLT Main Drive Pulley M14 x 1.5 x 5 |
| 2 | 006005197F1 | WASHER Main Drive Pulley |
| 3 | 006011299C91 | PULLEY Hydraulic Pump Splined - Single Groove |
| 4 | 006012352C1 | FRONT COVER 4CYL H2V2 |
| 5 | 006021183C1 | O RING WIRE DIA2.5-ID44 |
| 6 | 006000565F1 | ROLLER Bearing (35 x 62 x 14) |
| 7 | 000020118E05 | SPACER Hyd Pump Brg |
| 8 | 006000566F1 | ROLLER Bearing (35 x 72 x 17) |
| 9 | 000704385R1 | CIRCLIP Internal 72 mm |
| 10 | 000020369E05 | OIL SEAL Front |
| 11 | 006005061F1 | GEAR Hyd Pump |
| 12 | 006000598F1 | SPIDER Hydraulic Pump |
| 13 | 006000879F91 | GEAR Idler Assembly with Bush |
| 14 | ¡ | Not Serviceable Separately |
| 15 | 000020339E05 | BUSH for Idler Gear |
| 16 | 006005610C1 | SHAFT Idler Gear |
| 17 | 006006762F1 | BOLT Flanged Hex. Head M8 x 1.25 x 35 |
| 18 | 000020254E05 | BOLT Flanged Hex. Head M8 x 1.25 x 45 |
| 19 | 006007297F1 | BOLT M8 x 75 Thermostat Housing |
| 20 | 000020309E05 | BOLT Flanged Hex. Head M8 x 25 |
| 21 | 006003610F1 | BEARING Housing |
| 22 | 006000099F1 | GASKET-Cover Injection Pump Gear |
| 23 | 006017650C1 | OIL Filling Angled Elbow |
| 24 | 000020308E05 | BOLT M8 x 16 |
| 25 | ¡ | Not Serviceable Separately |
| 26 | ¡ | Not Serviceable Separately |
| 27 | ¡ | Not Serviceable Separately |
| 28 | E007701298D91 | SENSOR Phase |
| 29 | 000020797E05 | BOLT M6 |
| 30 | 006013453C1 | COVER Front Pto |
| 31 | 006013454C1 | GASKET Front Pto Cover |
| 32 | 006020792C91 | ASSY. Cap Oil Filler |
| 33 | 006020781V1 | ADAPTER Blowby |
| 34 | 006015374C1 | HOSE Oil Separator to Atmosphere |
| 35 | 006005061F1 | GEAR Hyd Pump |
| 36 | 000020777E05 | NUT Flanged M8 |
| 37 | 007609313C1 | BRACKET Mounting |
| 38 | 006000876F1 | GREASE SEAL for Front Cover |
| 39 | 007600185C1 | GREASE Nipple M6 |
| 40 | SF0705036 | CLAMP Spring Band 24X12X1.3 |
