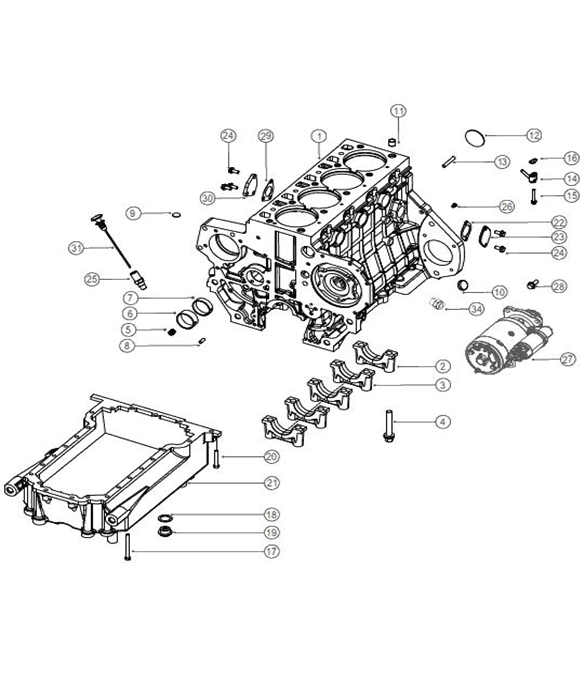

Modelo 60754WD Diagrama Crankcase with Oil Pan

1	006023100C91	ASSEMBLY Crankcase
2	Ą	Not Serviceable Separately
3	Ą	Not Serviceable Separately
4	006004569F1	BOLT Main Bearing Cap
5	000020787E05	PLUG M14 x 1.5 Hex Socket Pipe
6	006002987C1	BUSH Camshaft Front
7	006000015F1	BUSH Camshaft Rear
8	000020281E05	PIN Dowel 8.0 M6 x 18 DIN 7
9	006027736C1	PLUG Cup Type 25 Dia.
10	006027739C1	PLUG WELTCH Cup Type 40 for Water Gallery
11	000020507E05	SLEEVE Location
12	000020301E05	PLUG Expansion 56 x 2.0 x 80
13	005551963R1	PIN DOWEL 12.5 H8 - for Flywheel Housing to Crankcase
14	006051335C91	ASSY. JET PISTON COOLING - Micro
15	000051211D01	BOLT Allen - M6 x 25 mm Long
16	000020779E05	GASKET for Piston Cooling Jet Assembly
17	006000130F1	BOLT Flanged M8 x 1.25 x 145 Grade 8.8
18	000020286E05	SEALING for pipe union
19	006000110F1	DRAIN PLUG
20	000020254E05	BOLT Flanged Hex. Head M8 x 1.25 x 45
21	006027480C1	PAN OIL
22	000020495E05	GASKET Water Drain Plug Housing
23	006000386F1	PLATE Crankcase Water Drain
24	000020309E05	BOLT Flanged Hex. Head M8 x 25
25	006018991C1	OIL PAN DIPSTICK ADAPTOR
26	000020751E05	PIN SEALING for fuel timing hole
27	Ą	Not Serviceable Separately
28	000020313E05	BOLT Flanged Hex. Head M10 x 1.5 x 25
29	006019811C1	GASKET TURBO DRAIN PIPE CC END MSTAR
30	006021313C1	ADOPTER FOR MECHANICAL FEED PUMP-MSTAR
31	006032310U91	ASSY Dipstick
32	Ą	Not Serviceable Separately
33	Ą	Not Serviceable Separately
34	007609573C1	TAPER Connector
*	000020799E05	PLUG Tapper
*	006000557F1	STUD ROTARY FIP Mounting
*	000020280E05	PIN Dowel 8.0 m6 x 16
