Modelo 60754WD

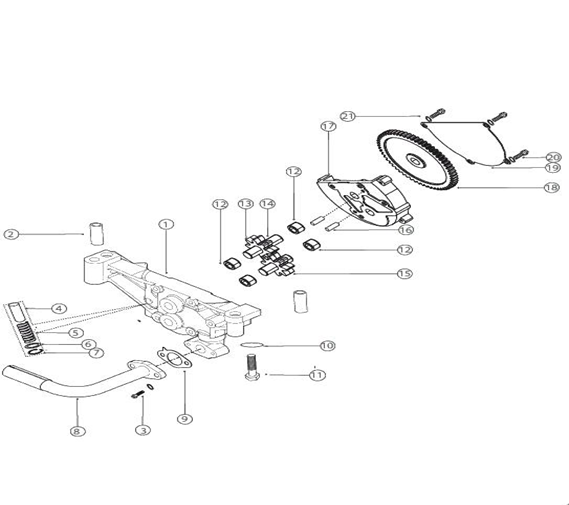

Diagrama Lubrication Oil Pump
| 1 | ¡ | Not Serviceable Separately |
| 2 | 000020275E05 | SLEEVE Location 14 x 15 |
| 3 | 000020312E05 | BOLT M6x20 |
| 4 | 000021785E11 | PISTON - Oil Relief Valve |
| 5 | 000021784E11 | SPRING - Oil Relief Valve |
| 6 | 000021789E11 | WASHER Plain |
| 7 | 000021788E11 | CIRCLIP |
| 8 | 006032362U1 | STRAINER |
| 9 | 000021720E11 | GASKET for Oil Cooler Pipe Flange |
| 10 | 001233808R1 | WASHER Spring |
| 11 | 000020302E05 | BOLT Flanged Hex. Head M10 x 1.5 x 65 |
| 12 | ¡ | Not Serviceable Separately |
| 13 | ¡ | Not Serviceable Separately |
| 14 | ¡ | Not Serviceable Separately |
| 15 | ¡ | Not Serviceable Separately |
| 16 | ¡ | Not Serviceable Separately |
| 17 | ¡ | Not Serviceable Separately |
| 18 | ¡ | Not Serviceable Separately |
| 19 | ¡ | Not Serviceable Separately |
| 20 | ¡ | Not Serviceable Separately |
| 21 | ¡ | Not Serviceable Separately |
| * | 006029256C91 | OIL PUMP Assembly |
