Modelo 60754WD

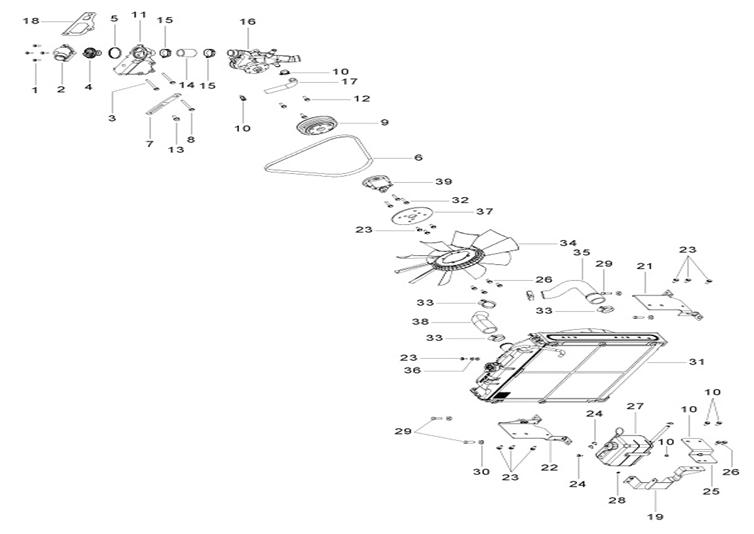

Diagrama Cooling System
| 1 | 000020312E05 | BOLT M6x20 |
| 2 | 006019000C1 | THERMOSTAT Hsg Cover |
| 3 | 006007297F1 | BOLT M8 x 75 Thermostat Housing |
| 4 | 006004365F91 | THERMOSTAT Assembly |
| 5 | 000020320E05 | GASKET Thermostat |
| 6 | 000020325E05 | BELT - 1185 mm |
| 7 | 006000792F1 | BRACKET Tensioner |
| 8 | SF0102334 | BOLT Hex Head M8 X 1.25 X 75 |
| 9 | 006000753F1 | PULLEY Water Pump Fan Drive |
| 10 | SF0705036 | CLAMP Spring Band 24X12X1.3 |
| 11 | 006004834F1 | THERMOSTAT Housing |
| 12 | 000020309E05 | BOLT Flanged Hex. Head M8 x 25 |
| 13 | 000020313E05 | BOLT Flanged Hex. Head M10 x 1.5 x 25 |
| 14 | 000020591E06 | HOSE By-Pass Water Pump |
| 15 | SF0705044 | CLAMP Spring Band 45 X 12 X 2.0 |
| 16 | 006051333C91 | PUMP Water |
| 17 | 006015374C1 | HOSE Oil Separator to Atmosphere |
| 18 | 000021920E14 | GASKET Thermostat Housing |
| 19 | 008013309U91 | BRACKET Surge Tank |
| 20 | SF0303005 | NUT Hex. Fl. M6 x 1 x 6 x 8 |
| 21 | 008011285U1 | BRACKET Mounting Radiator LH |
| 22 | 008011286U1 | BRACKET Mounting Radiator RH |
| 23 | 000020307E05 | BOLT M8 x 20 |
| 24 | SF0103056 | BOLT M6 x 1 x 15 x 8.8 |
| 25 | 008013304U1 | BRACKET Surge Tank Bottom |
| 26 | 000020308E05 | BOLT M8 x 16 |
| 27 | 008015644U91 | TANK Reservoir |
| 28 | 005551010R1 | NUT Hex. M6 x 1.0 x 3 x 6.6 |
| 29 | SF0101056 | BOLT Hex. M10 x 1.5 x 30 x 10.9 |
| 30 | SF0401053 | WASHER Plain M10 x 24 x 4 |
| 31 | 006014015C91 | RADIATOR Assembly with cowl and Thrush Guard |
| 32 | 000020253E05 | BOLT Flanged Hex. Head M8 x 1.25 x 35 |
| 33 | 000013499P04 | HOSE Clip for Suction Hose |
| 34 | 006020909D1 | FAN Metallic |
| 35 | 006023201C1 | HOSE Radiator Outlet |
| 36 | 001121752R3 | WASHER Rubber |
| 37 | 006026057C1 | PLATE Fan Mounting |
| 38 | 006023200C1 | HOSE Radiator Inlet |
| 39 | 006023212C1 | FAN Adaptor |
