Modelo 60754WD

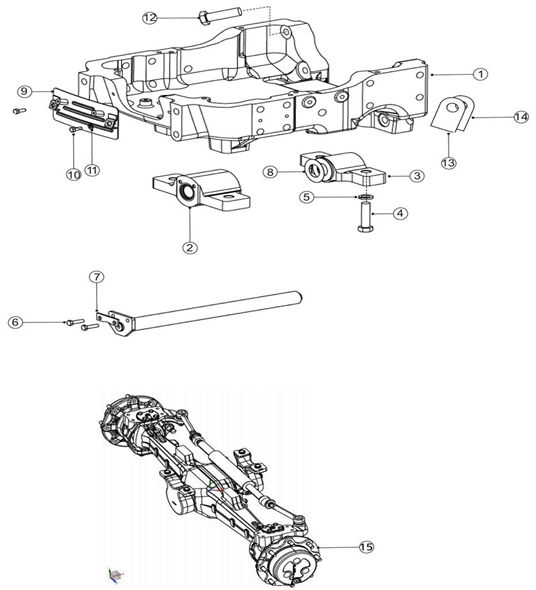

Diagrama FRONT AXLE AND SUPPORT ASSY.
| 1 | 008000021U1 | SUPPORT Front Axle 4WD |
| 2 | 007607197C91 | BUSH And Pillow Block Assembly Front |
| 3 | 007607198C91 | BUSH And Pillow Block Assembly Rear |
| 4 | 007603285C1 | PILLOW Block Bolt |
| 5 | 000050614D02 | WASHER Spring Lock |
| 6 | 001081607R1 | BOLT M8 x 1.25 - 20 Long |
| 7 | 007607235C1 | WASHER Tab Pivot Pin |
| 8 | 007607601C1 | SHIM For Center Pivot Pin |
| 9 | 008011158U91 | COVER Front Support |
| 10 | 000020307E05 | BOLT M8 x 20 |
| 11 | 000020306E05 | BOLT Flanged - M8 x 1.25 x 30 |
| 12 | 000040341C08 | BOLT M 16 x 85 |
| 13 | 001121433R1 | SHIM Bull Gear 0.015 |
| 14 | 001121433R1 | SHIM Bull Gear 0.015 |
| 15 | 006512954U92 | 4WD LIVE FRONT AXLE |
| * | 007602353D91 | KIT Front Tow Hook |
| * | E007602333D1 | FRONT TOW HOOK |
| * | 007900206D1 | PIN Front Tow - HML |
| * | 007900013D1 | SPRING Cotter 6.3 Din 11024-Zinc PL - H3 |
| * | 007900012D1 | BOLT Hex. Head M16 x 2 x 50 |
| * | 005556521R1 | WASHER Spring M16 x 27.4 x 3.5 |
