Modelo 60754WD

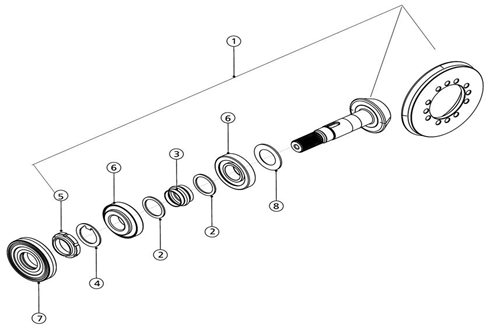

Diagrama BEVEL GEAR SET
| 1 | 006514831U91 | PINION Bevel Gear Z13/37 |
| 2 | 006514832U1 | WASHER |
| 3 | 006514833U1 | COLLAPSIBLE SPACER |
| 4 | 006514834U1 | LOCK WASHER |
| 5 | 006514835U1 | RING NUT M35X1.5 |
| 6 | 006514836U1 | BEARING |
| 7 | 006514837U1 | SEAL |
| 8 | 006514838U1 | SHIM 2.50mm |
| 8 | 006514839U1 | SHIM 2.60MM |
| 8 | 006514840U1 | SHIM 2.70MM |
| 8 | 006514841U1 | SHIM 2.80mm |
| 8 | 006514842U1 | SHIM 2.90mm |
| 8 | 006514843U1 | SHIM 3.00mm |
| 8 | 006514847U1 | SHIM 3.10MM |
| 8 | 006514848U1 | SHIM 3.20MM |
| 8 | 006514849U1 | SHIM 3.30mm |
| 8 | 006514850U1 | SHIM 3.40mm |
