Modelo 60754WD

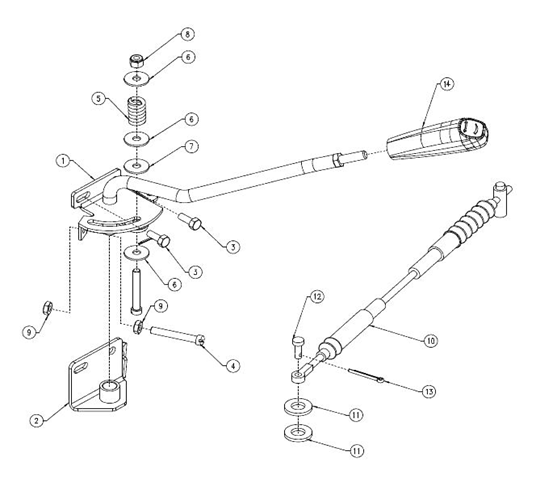

Diagrama Hand Accelerator Assembly
| 1 | 007610186C1 | HAND ACCELERATOR ASSEMBLY CPTE MSTAR |
| 2 | 007610187C1 | HAND ACCL LOCKING BKT MSTAR |
| 3 | 000020311E05 | BOLT M6 x 16 |
| 4 | 000225507 | SCREW G6.35mm x 44.45mm |
| 5 | 003047323R1 | SPRING Governor Control |
| 6 | 003047325R1 | WASHER Governor Control |
| 7 | 000704681R2 | WASHER Governor Control Friction |
| 8 | 001121174R1 | NUT Nylock 1/4 UNF |
| 9 | 000114492 | NUT Jam V4 UNC Hex. |
| 10 | 008012336U1 | CABLE Foot Accelerator |
| 11 | 000060685M01 | WASHERS Plain M6 |
| 12 | 000060724M01 | PIN Cable Mounting |
| 13 | 000103361 | PIN Cotter |
| 14 | 007543855C91 | KNOB |
