Modelo 60754WD

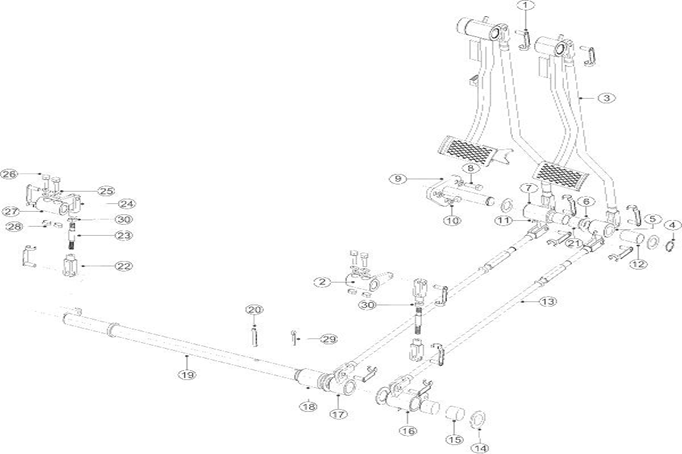

Diagrama Brake Linkages
| 1 | 000012935P04 | YOKE Lock Pin |
| 2 | 007607357C11 | LEVER Brake Actuation RH |
| 3 | 007607241C1 | LINK brake Vertical |
| 4 | 005554798R1 | CIRCLIP External |
| 5 | 007607213C11 | CONNECTOR Brake Link RH |
| 6 | 000012718P04 | WASHER 28 x 45 x 2.5 |
| 7 | 007607214C11 | CONNECTOR Brake Link LH |
| 8 | 001233891R1 | BOLT Hex M10 x 1.5 x 30LG |
| 9 | 007607202C11 | PIVOT Shaft Brakes |
| 10 | 005555988R1 | WASHER M10 Spring Lock |
| 11 | 007602043C1 | GREASE Nipple M6 x 90 Deg. |
| 12 | 000012770P04 | BUSH Sintered 28 x 40L |
| 13 | 007609301C91 | Link brake Horizontal |
| 14 | 005552116R1 | WASHER |
| 15 | 001231903R1 | BUSH Brake Pedal Shaft |
| 16 | 007607217C11 | PIVOT Brake Sleeve RH |
| 17 | 007607216C11 | PIVOT Brake LH |
| 18 | 007607215C1 | SPACER Shaft |
| 19 | 007607203C1 | BRAKE CROSS SHAFT |
| 20 | 000455183R1 | PIN Slotted Spring |
| 21 | 000012713P04 | BUSH Sintered 28 x 25L |
| 22 | 007600776D1 | YOKE Standard M10 x 1.25 |
| 23 | 007600251D1 | TURN LINK for Clutch M10 x 1.25 x 100 RH LH |
| 24 | 007600229D1 | YOKE Standard M10 x 1.25 |
| 25 | 000022273RD | WASHER Spring M10 |
| 26 | 006000453H1 | BOLT M10 X 55 |
| 27 | 007607356C11 | LEVER Brake Actuation LH |
| 28 | 005554365R1 | NUT M10 x 1.5 |
| 29 | 000103411 | PIN Cotter |
| 30 | 000012645P04 | NUT Flanged M10 x 1.25 |
