Modelo 60754WD

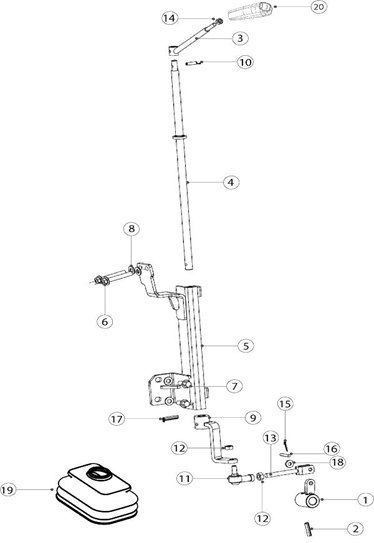

Diagrama F-R Linkages
| 1 | 007610397C1 | FR CAM OUTER |
| 2 | 006511266U1 | COMPOUND ROLL PIN DIA 8 X 35 |
| 3 | 007611178C12 | LEVER Forward Reverse |
| 4 | 007610405C1 | FR LEVER ASSY |
| 5 | 007611201C11 | BRACKET Support F-R |
| 6 | 000030024R1 | BOLT HEX M10X1.5X45X8.8 |
| 7 | 000020313E05 | BOLT Flanged Hex. Head M10 x 1.5 x 25 |
| 8 | 000030184R1 | WASHER Plain M10 |
| 9 | 007611203C11 | ACTUATING LINK F-R MSTAR |
| 10 | 006513178Y91 | PIN Roll Compound 6.35 4.25 X 30 |
| 11 | 006500931C91 | BALL Joint Assembly |
| 12 | 005554365R1 | NUT M10 x 1.5 |
| 13 | 007610409C1 | FR YOKE ASSY |
| 14 | 005553017R1 | NUT M8 x 1.25 |
| 15 | 000103373 | PIN Cotter 3/32 X 3/4 |
| 16 | 000039374D | PIN |
| 17 | 006513546V91 | COMPOUND ROLL PIN FOR PTO |
| 18 | 007535860D1 | WASHER Plain 8.5 x 19 x 3 |
| 19 | E007610660C1 | BELLOW F-R |
| 20 | 007543855C91 | KNOB |
