Modelo 60754WD

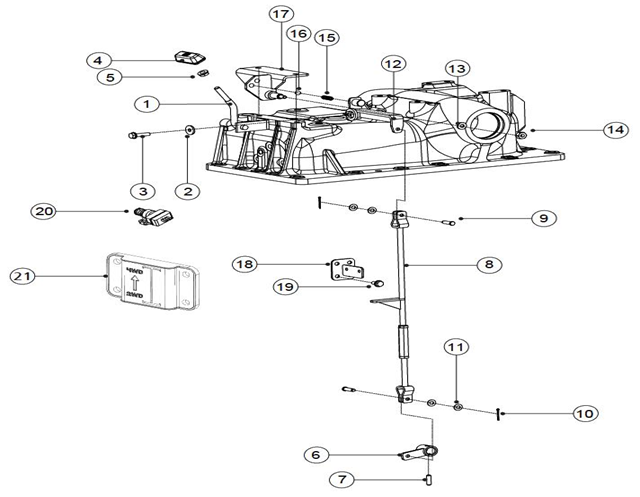

Diagrama 4WD Engagement
| 1 | 007610609C11 | 4WD LEVER ASSEMBLY MSTAR |
| 2 | 000020739E05 | WASHER Plain |
| 3 | 000020306E05 | BOLT Flanged - M8 x 1.25 x 30 |
| 4 | 007635849U1 | KNOB Lever 4WD |
| 5 | 006003914H1 | NUT Flange Hex M10 |
| 6 | 007610362C11 | 4WD_ACTUATION_ASSEMBLY_MSTAR |
| 7 | 000012508P04 | SPRING Dowel Sleeve Dia 8 x 28 |
| 8 | 007610352C11 | 4WD_CONNECTING_ROD_MSTAR |
| 9 | 000039374D | PIN |
| 10 | 000103374 | PIN Cotter 3/32 X 1 |
| 11 | 007535860D1 | WASHER Plain 8.5 x 19 x 3 |
| 12 | 007610361C11 | 4WD_SLEEVE_ASSEMBLY_MSTAR |
| 13 | 000020739E05 | WASHER Plain |
| 14 | 000020777E05 | NUT Flanged M8 |
| 15 | 006502304R1 | SPRING Gear Shifter Poppet |
| 16 | 001082178R1 | STEEL BALL |
| 17 | 007610355C11 | 4WD__BRACKET_ASSEMBLY_MSTAR |
| 18 | 007611130C1 | ASSY. Bracket Switch Mtg. |
| 19 | 000020308E05 | BOLT M8 x 16 |
| 20 | 000013058P05 | SWITCH PTO |
| 21 | 007545080C1 | 4WD CUT OUT COVER |
