Modelo 60754WD

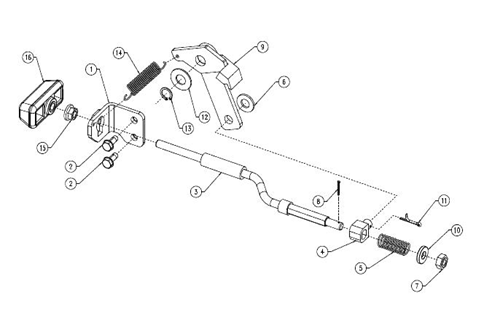

Diagrama Parking Brake
| 1 | 007610225C11 | LOCK PLATE PARKING BRAKE MSTAR |
| 2 | 000020311E05 | BOLT M6 x 16 |
| 3 | 007610223C11 | PARKING BRAKE ROD MSTAR |
| 4 | 007609536C1 | PIVOT PARKING LEVER MSTAR |
| 5 | 007607967C1 | SPRING PARKING LEVER |
| 6 | 000022079RD | WASHER M10 |
| 7 | 000020742E05 | NUT Nylock M8 x 1.25 |
| 8 | 000103361 | PIN Cotter |
| 9 | 007610222C11 | LOCK PARKING MSTAR |
| 10 | 000751472R1 | WASHER Plain M8 |
| 11 | 000103374 | PIN Cotter 3/32 X 1 |
| 12 | 000120396 | WASHER Plain |
| 13 | 000013354P04 | CIRCLIP Dia. 12 MM |
| 14 | 007601791D1 | SPRING Parking Lever |
| 15 | 000020777E05 | NUT Flanged M8 |
| 16 | 007607968C1 | PARKING BRAKE KNOB |
