Modelo 60754WD

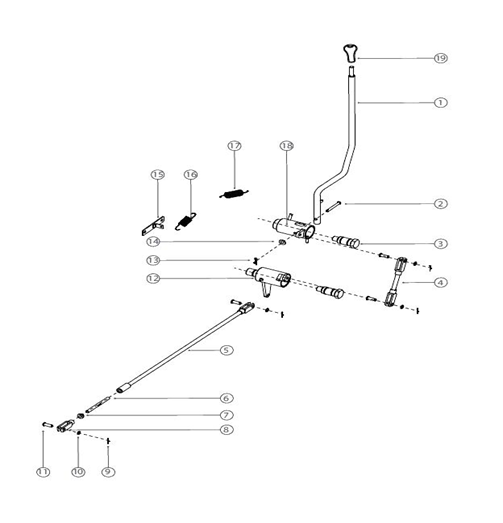

Diagrama SLIPTO Lever Linkages
| 1 | 008007627U1 | LEVER SLIPTO |
| 2 | 007542700C1 | PIN Clevis SLIPTO |
| 3 | 007542708C1 | PIN Pivot SLIPTO |
| 4 | 007542397C91 | LINK Intermediate Connecting Assy |
| 5 | 007542425C91 | LINK Intermediate Horizontal Assy |
| 6 | E007605736D1 | TURN LINK for Clutch M10 x 1.25 x 100 RH LH |
| 7 | 000012645P04 | NUT Flanged M10 x 1.25 |
| 8 | 007600229D1 | YOKE Standard M10 x 1.25 |
| 9 | 000103374 | PIN Cotter 3/32 X 1 |
| 10 | 000012914P04 | WASHER Plain 10 Dia |
| 11 | 000012848P04 | PIN Joint 10 Dia |
| 12 | 007542695C91 | SLEEVE Intermdiate SLIPTO Assy. |
| 13 | 000103374 | PIN Cotter 3/32 X 1 |
| 14 | 007535860D1 | WASHER Plain 8.5 x 19 x 3 |
| 15 | 007542703C91 | SPRING Return MTG Assy |
| 16 | 000042000C11 | SPRING Return |
| 17 | 007600359D1 | SPRING Foot Accelerator |
| 18 | 007542691C91 | SLEEVE Main SLIPTO Assy. |
| 19 | 007543860C91 | KNOB SLIPTO LEVER |
