Modelo 60754WD

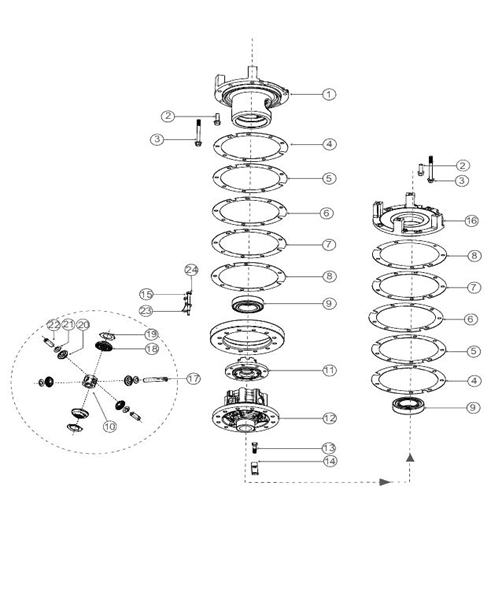

Diagrama Differential Assembly
| 1 | 006509623U2 | CAGE Differential Bearing Cum Brake RH |
| 2 | 000016469P04 | BOLT M10 x 1.5 x 35L |
| 3 | 006508409U1 | BOLT Brake Plate to Rear Housing |
| 4 | 006509802U1 | SHIM 0.05 |
| 5 | 006509801U1 | SHIM 0.8 |
| 6 | 006509800U1 | SHIM 0.4 |
| 7 | 006509799U1 | SHIM 0.2 |
| 8 | 006509798U1 | SHIM 0.1 |
| 9 | 005557178R91 | BEARING Taper Roller (482/472) |
| 10 | 006510510V1 | SUPPORT SPIDER-DHRUV |
| 11 | ¡ | CASE Differential RH |
| 12 | ¡ | CASE Differential LH |
| 13 | 006508412U1 | BOLT Ring Gear Diff Case |
| 14 | 006512859U1 | PLATE Lock Ring Gear Bolt |
| 15 | 000016631P04 | BOLT Hex. Head M10 x 40 |
| 16 | 006509621U2 | CAGE Differential Bearing Cum Brake LH |
| 17 | 006509761U1 | PIN Differential Pinion Longer |
| 18 | 006508362U1 | GEAR Bevel Differential |
| 19 | 006509701U1 | WASHER Thrust Differential Gear |
| 20 | 006510629V1 | PINION Differential |
| 21 | 006508366U1 | WASHER Thrust Differential Pinion |
| 22 | 006509762U1 | PIN Differential Pinion Shorther |
| 23 | 006508720U1 | PLATE Lock Differential Case |
| 24 | 006507259B1 | BOLT M 10 x 1.5 x 95 |
| * | 006513774U1 | SHIM 0.075 |
| * | 006509826U91 | ASSY. Case Differential LH RH |
