Modelo 60754WD

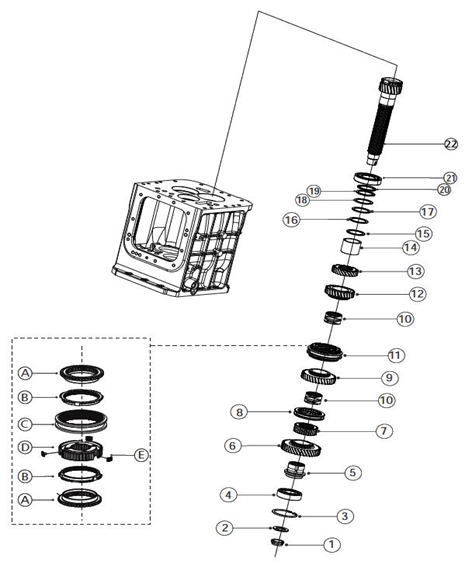

Diagrama Counter Shaft Sub Assembly
| 1 | 006508426U1 | NUT Crimping Dia 53 |
| 2 | 006509903U1 | SPACER Input Driven Gear |
| 3 | 000012226P04 | CIRCLIP HD90 |
| 4 | 006505608D1 | BEARING BALL 40 X 90 X 23 |
| 5 | 006509816U1 | BUSH 1st Driven Gear |
| 6 | 006509632U1 | GEAR 1st Driven T39 |
| 7 | 006509828U1 | HUB 1st Driven Gear |
| 8 | 006509966U1 | COUPLING Constant Mesh Reverse |
| 9 | 006509634U1 | GEAR 2nd Driven T35 Synchro |
| 10 | 006512098U1 | BUSH 2nd 3rd Driven Synchro |
| 11 | 006512110U1 | SYNCHRONISER Hub |
| 12 | 006509636U1 | GEAR 3rd Driven T29 Synchro |
| 13 | 006511649U1 | GEAR 4th Driven T26 |
| 14 | 006509661U1 | SPACER 4th Driven Gear |
| 15 | 006509989U1 | SPACER Graded Range Shaft 4.0 |
| 16 | 006509990U1 | SPACER Graded Range Shaft 4.2 |
| 17 | 006509991U1 | SPACER Graded Range Shaft 4.4 |
| 18 | 006509992U1 | SPACER Graded Range Shaft 4.6 |
| 19 | 006509993U1 | SPACER Graded Range Shaft 4.8 |
| 20 | 006509994U1 | SPACER Graded Range Shaft 5.0 |
| 21 | 006508436U1 | BEARING Cylindrical Roller (55x100x21) |
| 22 | 006512654U1 | SHAFT DRIVEN 5TH SPEED CM T21 |
| A | 006512105U1 | CB Ring 2nd 3rd Driven Gear |
| B | 006512117U1 | SYNCHRONISER Ring |
| C | 006512107U1 | SLEEVE Synchroniser |
| D | 006512110U1 | SYNCHRONISER Hub |
| E | 006512173U91 | STRUT Synchroniser |
