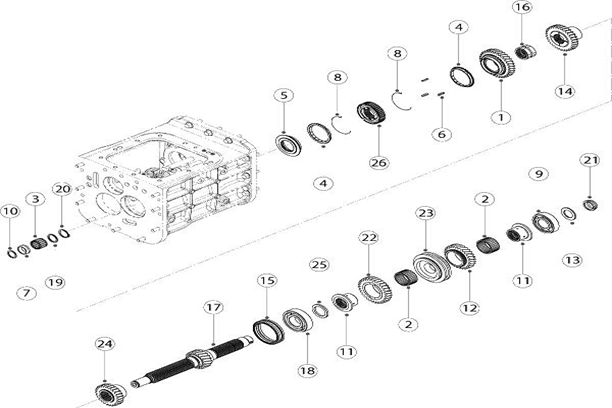

Modelo 60754WD Diagrama Speed Drive Shaft Sub Assembly

1	006515733U1	GEAR 4th Driving T35
2	000016212P04	NRB 55 x 63 x 32
3	000012119P04	NEEDLE Bearing Idler Shaft
4	006508030D1	SYNCHRONISER Ring
5	006511889U1	CB RING 5th Driving Gear
6	006508029D1	KEY Synchroniser
7	006509904U1	SPACER 30 x 39 x 13.65
8	006508028D1	C-SPRING For Synchroniser
9	006505608D1	BEARING BALL 40 X 90 X 23
10	006508991U1	V-RING Dia 30
11	006512657U1	BUSH FORWARD REVERSE DRIVEN
12	006513629U1	GEAR REVERSE DRIVEN
13	006509903U1	SPACER Input Driven Gear
14	006509635U1	GEAR Driving 3rd Speed T31
15	0703EA0020N	SLEEVE Synchronizer
16	006511712U1	BUSH 4th Driving Gear Synchro
17	006512653U1	SHAFT SPEED DRIVER T13
18	000012146P04	BEARING Drive Shaft Rear 6309 P Type
19	006508429U1	SPACER 30 X 40 X 3
20	000012353P04	CIRCLIP External - Trans. Driving Shaft Ld 35
21	006508426U1	NUT Crimping Dia 53
22	006513624U1	GEAR INPUT DRIVEN T31
23	006518659U91	SYNCHRONIZER Dia. 90
24	006509633U1	GEAR Driving 2nd Speed T26
25	006513834U1	SPACCER INPUT DRIVEN GEAR FR
26	006511888U1	SYNCHRONISER Hub
