Modelo 60754WD

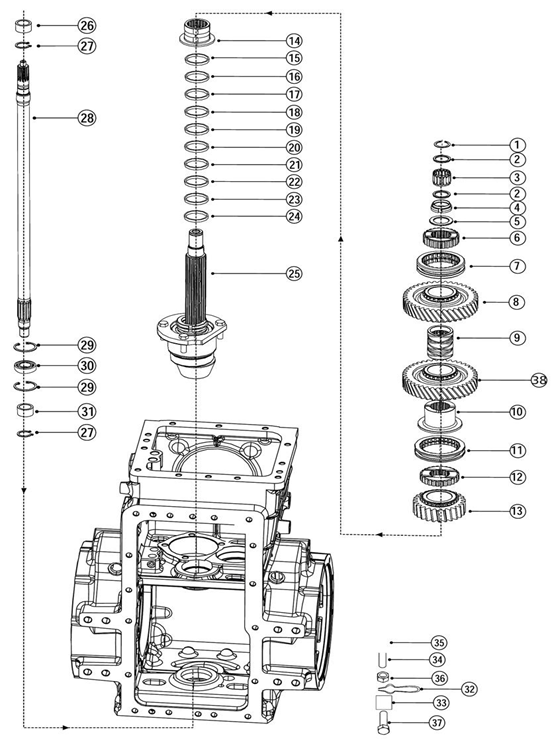

Diagrama Spline Shaft Assembly
| 1 | 006508991U1 | V-RING Dia 30 |
| 2 | 006508429U1 | SPACER 30 X 40 X 3 |
| 3 | 000012119P04 | NEEDLE Bearing Idler Shaft |
| 4 | 006508426U1 | NUT Crimping Dia 53 |
| 5 | 006509900U1 | SPACER Graded Speed Shaft 3.0 |
| 6 | 006509688U1 | HUB Constant PTO Two Speed T24 |
| 7 | 006508428U1 | COUPLING Constant Mesh 2-3, 4-5 |
| 8 | 006515048U1 | GEAR Low Driven With Creeper |
| 9 | 006509738U1 | BUSH Low Driven Gear |
| 10 | 006509671U1 | SPACER Spline Shaft |
| 11 | 006509966U1 | COUPLING Constant Mesh Reverse |
| 12 | 006509968U1 | HUB Gear Medium Ext. 26T/ Int 21 T |
| 13 | 006509666U1 | GEAR Driven Medium |
| 14 | 006509669U1 | BUSH Driven Medium Gear |
| 15 | 006509983U1 | SPACER Graded Spline Shaft 5.6 |
| 16 | 006509982U1 | SPACER Graded Spline Shaft 5.4 |
| 17 | 006509981U1 | SPACER Graded Spline Shaft 5.2 |
| 18 | 006509980U1 | SPACER Graded Spline Shaft 5.0 |
| 19 | 006509979U1 | SPACER Graded Spline Shaft 4.8 |
| 20 | 006509978U1 | SPACER Graded Spline Shaft 4.6 |
| 21 | 006509977U1 | SPACER Graded Spline Shaft 4.4 |
| 22 | 006509976U1 | SPACER Graded Spline Shaft 4.2 |
| 23 | 006509975U1 | SPACER Graded Spline Shaft 4.0 |
| 24 | 006509974U1 | SPACER Graded Spline Shaft 3.8 |
| 25 | ¡ | FIP Inline |
| 26 | 006508415U1 | COUPLING PTO Shaft Mid Front |
| 27 | 006509197U1 | INTERNAL Circlip Dia 22 x 1.5 |
| 28 | 006509681U1 | SHAFT PTO Driver Intermediate |
| 29 | 000032120B12 | CIRCLIP Spline Shaft Front End |
| 30 | 006509193U1 | BEARING Ball Deep Groove 6206 |
| 31 | 006511443U1 | COUPLING PTO Shaft |
| 32 | 006510880U1 | SNUBBER |
| 33 | 006510882U1 | SPACER |
| 34 | 000012298P04 | STUD M12 x 65 |
| 35 | 007535360D1 | NUT Hex Flange (Class 8) |
| 36 | 000060683M01 | NUT Nyloc M6 |
| 37 | 007200618C1 | ALLEN Screw M6 x 45 |
| 38 | 006513720U1 | DRIVING GEAR 4WD MSTAR |
| * | 006516156U1 | GEAR Driven Creeper Spline Shaft T43 |
| * | 006515041U1 | BUSH Creeper Driven Gear |
| * | 006515358U1 | NEEDLE BEARING 55 x 60 x 30 |
