Modelo 60754WD

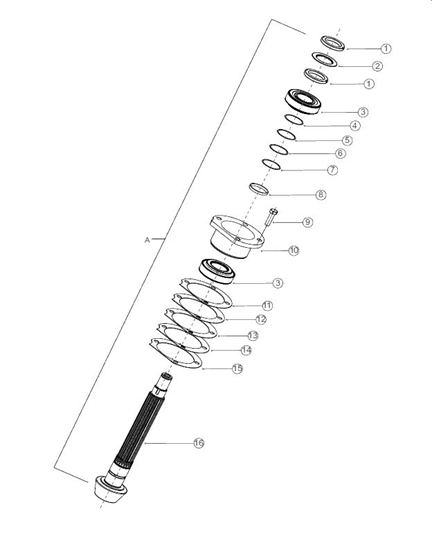

Diagrama Spline Shaft Sub Assembly
| 1 | 006509970U1 | LOCK Nut |
| 2 | 006509287U1 | LOCK Plate Spline Shaft Lock Nut |
| 3 | 005557131R91 | BRG Taper Spline Shaft-rear |
| 4 | 003044040R1 | SHIM Spline Shaft Brg Cage-0.004 |
| 5 | 003044039R1 | SHIM Spline Shaft Brg Cage-0.010 |
| 6 | 003044038R1 | SHIM Spline Shaft Brg Cage-0.003 |
| 7 | 001232925R1 | SHIM Spline Shaft Brg Cage-0.002 |
| 8 | 006501521B1 | SPACER Trans Spline S T R Brg |
| 9 | 000013898P04 | BOLT M12 x 1.74 x 40 |
| 10 | 006509667U1 | CAGE Bearing Spline Shaft |
| 11 | 006509906U1 | SHIM Spline Shaft Bear.Cage 0.1 |
| 12 | 006509905U1 | SHIM Spline Shaft Bear.Cage 0.075 |
| 13 | 006509907U1 | SHIM Spline Shaft Bear.Cage 0.2 |
| 14 | 006509909U1 | SHIM Spline Shaft Bear.Cage 0.8 |
| 15 | 006509908U1 | SHIM Spline Shaft Bear.Cage 0.4 |
| 16 | ¡ | Not Serviceable Separately |
| * | 006515500U91 | SET of Two |
| * | ¡ | Not Serviceable Separately |
