Modelo 60754WD

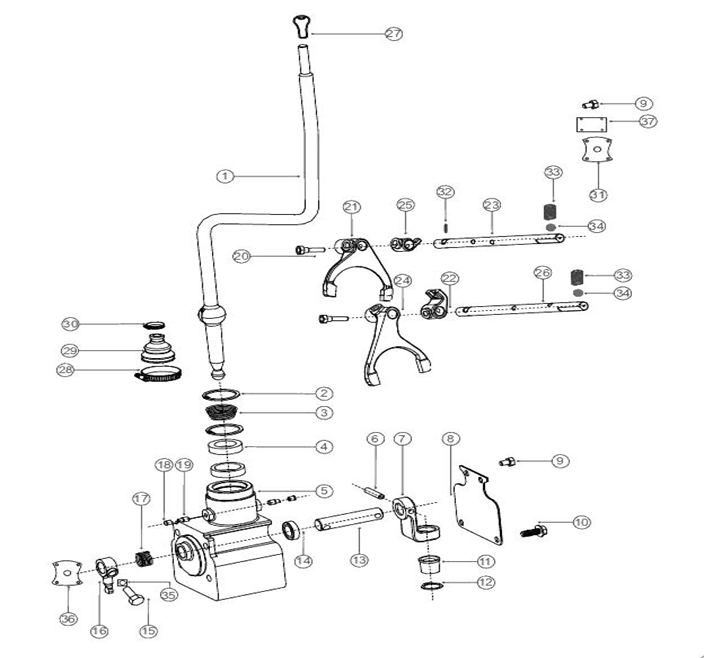

Diagrama Range Transmission External
| 1 | 006512065U91 | LEVER Range Shifting |
| 2 | 000012188P04 | CIRCLIP Internal |
| 3 | 006511051U1 | SPRING Conical Gear Shifter Lever |
| 4 | 000012010P04 | SPHERICAL Half Gear Shifter Lever |
| 5 | 006512064U1 | HOUSING Range Secttion |
| 6 | 000012282P04 | PIN Roll M8 x 40 |
| 7 | 006512072U1 | CAM Outer Range |
| 8 | 006512070U1 | COVER Side Ange Shifting |
| 9 | 000012190P04 | BOLT Hex. M8 x 12 |
| 10 | 000020313E05 | BOLT Flanged Hex. Head M10 x 1.5 x 25 |
| 11 | 000013939P04 | BUSH Cam Link |
| 12 | 000704589R1 | CIRCLIP External 24mm |
| 13 | 006512083U1 | SHAFT Cam Range |
| 14 | 006504206C91 | OIL Seal Housing Rail |
| 15 | 006505658D1 | HEX Bolt M10 x 1.5 |
| 16 | 006512071U1 | CAM Inner Range |
| 17 | 006512091U1 | SPRING Neutral Range |
| 18 | 000444687 | PLUG 1/8 NPTF |
| 19 | 006511258C1 | PIVOT PIN - MPT |
| 20 | 006512074U1 | DOWEL Bolt Range |
| 21 | 006509714U1 | FORK Medium |
| 22 | 006509752U1 | SECTION Shifter Medium |
| 23 | 006512069U1 | RAIL Medium |
| 24 | 006512861U1 | FORK High Low |
| 25 | 006509751U1 | SECTION Shifter High Low |
| 26 | 006518660U1 | RAIL High Low |
| 27 | 007545744C91 | KNOB Range Shifter Assembly |
| 28 | 005555585R91 | CLIP |
| 29 | 006509780U1 | RUBBER Boot |
| 30 | 005552915R91 | CLIP |
| 31 | 006512326B1 | LOCTITE 515 |
| 32 | 006509756U1 | PIN Inter Lock |
| 33 | 006509853U1 | SPRING |
| 34 | 006503662C1 | BALL Poppet |
| 35 | 000031994B12 | LOCK Plate High-Low |
| 36 | 006512326B1 | LOCTITE 515 |
| 37 | 006508905U1 | COVER Side Rear Housing |
