Modelo 60754WD

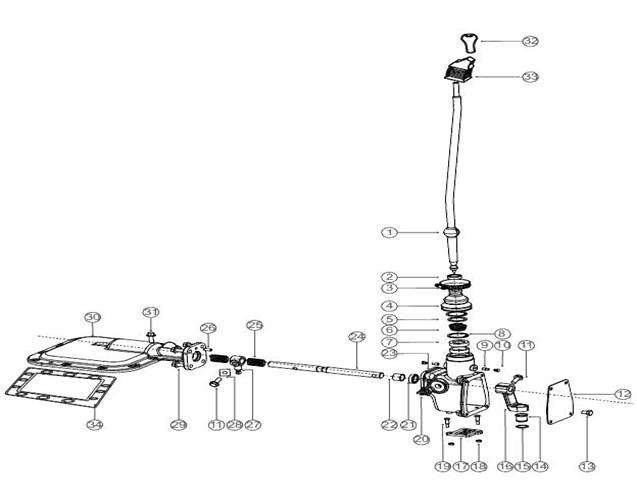

Diagrama Speed Shifting System
| 1 | 006511075U91 | LEVER Gear Shifter Speed Section |
| 2 | 005552915R91 | CLIP |
| 3 | 005555585R91 | CLIP |
| 4 | 006509780U1 | RUBBER Boot |
| 5 | 006511061U1 | SPACER Small Shifter Housing |
| 6 | 006511051U1 | SPRING Conical Gear Shifter Lever |
| 7 | 000012010P04 | SPHERICAL Half Gear Shifter Lever |
| 8 | 000012188P04 | CIRCLIP Internal |
| 9 | 006511258C1 | PIVOT PIN - MPT |
| 10 | 000444687 | PLUG 1/8 NPTF |
| 11 | 006508939U1 | BOLT M10 x 1.25 x 25 |
| 12 | 006509771U1 | PLATE Shifter Housing |
| 13 | 000012190P04 | BOLT Hex. M8 x 12 |
| 14 | 000013939P04 | BUSH Cam Link |
| 15 | 000704589R1 | CIRCLIP External 24mm |
| 16 | 006509779U1 | CAM Outer Speed Section |
| 17 | 006511063U1 | GUIDE Plate Speed Shifter |
| 18 | 000060683M01 | NUT Nyloc M6 |
| 19 | 006511234U1 | LOCATING Pin Edge Plate |
| 20 | 007701839C91 | NEUTAL Switch Nc With Pigtail |
| 21 | 006504206C91 | OIL Seal Housing Rail |
| 22 | 006513716U1 | BUSH Cam Link H3 |
| 23 | 006509727U1 | SHIFTER Housing |
| 24 | 006509767U1 | SHAFT Cam Operating Speed Section |
| 25 | 006511050U1 | SPRING Bias Cross Shaft |
| 26 | 000020281E05 | PIN Dowel 8.0 M6 x 18 DIN 7 |
| 27 | 006509766U1 | CAM Inner Mstar |
| 28 | 000031994B12 | LOCK Plate High-Low |
| 29 | 000020313E05 | BOLT Flanged Hex. Head M10 x 1.5 x 25 |
| 30 | 006511066U91 | TOP Cover Plate |
| 31 | 000020313E05 | BOLT Flanged Hex. Head M10 x 1.5 x 25 |
| 32 | 007545027C91 | KNOB Gear Shifter |
| 33 | 007542130C1 | BELLOW Gear Shifter |
| 34 | 40.300 | LOCTITE 5060 |
