Modelo 60754WD

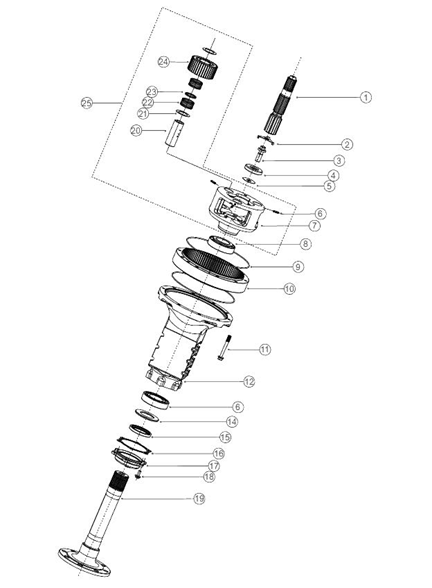

Diagrama Planetary Assembly
| 1 | 006509706U1 | SHAFT Sun 15T LH |
| 2 | 006510634U1 | LOCK Plate Rear Axle Preloading |
| 2 | 006510635U1 | LOCK Plate Rear Axle Preloading |
| 2 | 006510649U1 | LOCK Plate Rear Axle Preloading |
| 3 | 006510005U1 | BOLT Preload Rear Axle |
| 4 | 006510682U1 | WASHER Retainer Planetary |
| 5 | 006510375U1 | SHIM |
| 5 | 006508347U1 | SHIM |
| 5 | 006508348U1 | SHIM |
| 5 | 006508345U1 | SHIM |
| 5 | 006508346U1 | SHIM |
| 6 | 000012415P04 | SPRING Dowel Pin Din 1481- 6 x 24 |
| 7 | 006510646U1 | HOUSING PLANET Carrier |
| 8 | 000031275B12 | BEARING Taper Roller, Rear Axle Outer |
| 9 | 006512862U1 | O - RING |
| 10 | 006509708U1 | GEAR Internal |
| 11 | 006508409U1 | BOLT Brake Plate to Rear Housing |
| 12 | 006509620U1 | CARRIER Rear Axle |
| 14 | 006509649U1 | SPACER Rear Axle TRB |
| 15 | 006512203U1 | SEAL Cassete 80 x 104 x 13/14.5 |
| 16 | 006509704U1 | GASKET Retainer Rear Axle Carrier |
| 17 | 006512114U1 | RETAINER Rear Axle Carrier |
| 18 | 000020313E05 | BOLT Flanged Hex. Head M10 x 1.5 x 25 |
| 19 | 006509703U1 | AXLE Rear |
| 20 | 006510647U1 | PIN Planet Gear |
| 21 | 006504384D1 | WASHER Thrust |
| 22 | 000016397P04 | NRB NEEDLE Cage K42.422 x 51.948 x 25.4 |
| 23 | 006520170U1 | SPACER Planet Bearing |
| 24 | 006510645U1 | GEAR Planet |
| 25 | 006510650U91 | PLANETARY Carrier Assembly 60HP |
| * | 006509707U1 | SHAFT Sun 15T RH |
| * | 006509364U91 | ASSY. RAC |
