Modelo 60754WD

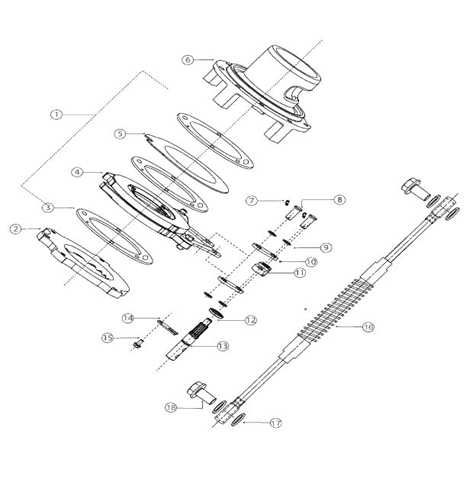

Diagrama Brakes Assembly
| 1 | 006508417U91 | ASSEMBLY Brake |
| 2 | 006509770U1 | BACKING Plate Brakes |
| 3 | 006508528U1 | FRICTION Plate |
| 4 | 006508527U1 | ACTUATING Disc |
| 5 | 006508529U1 | STEEL Plate |
| 6 | 006509623U2 | CAGE Differential Bearing Cum Brake RH |
| 7 | 000013894P04 | PIN Cotter 3.2 x 25 (Split Type) |
| 8 | 000016136P04 | PIN for Brake |
| 9 | 000016137P04 | WASHER Plain 15 dia. |
| 10 | 006508600U1 | STRAP TIE |
| 11 | 006502748D1 | BRAKE Lever (Inside) |
| 12 | 000016141P04 | OIL SEAL 38 x 24 x 6 |
| 13 | 006509702U1 | BRAKE Shaft RH |
| 14 | 000016142P04 | LOCK PLATE |
| 15 | 000020308E05 | BOLT M8 x 16 |
| 16 | 006511885U1 | HOSE Brake Lubrication |
| 17 | 007205248C1 | BANJO Washer |
| 18 | 005555490R1 | BOLT Banjo |
| * | 006509621U2 | CAGE Differential Bearing Cum Brake LH |
| * | 006510045U1 | SHAFT Brake LH |
