Modelo 60754WD

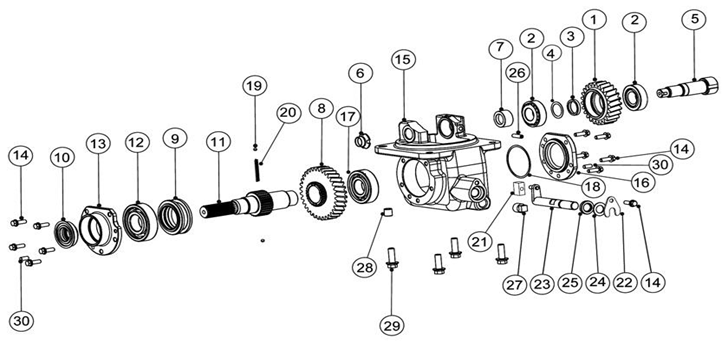

Diagrama Dropbox Assembly
| 1 | 006516560U1 | IDLER GEAR DROPBOX 4WD MSTAR |
| 2 | 007500054C91 | BEARING Outer Front Wheel |
| 3 | 006512248U1 | SPACER TRB PRELOAD GAP 4WD-MSTAR |
| 4 | 006512249U1 | SHIM TRB PRELOAD 4WD-MSTAR |
| 4 | 006512675U1 | SHIM TRB 4WD MSTAR - 0.1 |
| 4 | 006512676U1 | SHIM TRB 4WD MSTAR - 0.2 |
| 4 | 006512677U1 | SHIM TRB 4WD MSTAR - 0.4 |
| 5 | 006516561U1 | IDLER SHAFT DROPBOX 4WD-MSTAR |
| 6 | 006512252U1 | CRIMPING LOCK NUT IDLER SHAFT 4WD-MSTAR |
| 7 | 006516562U1 | SPACER IDLER SHAFT 4WD-MSTAR |
| 8 | 006513722U1 | OUTPUT GEAR DROPBOX 4WD MSTAR |
| 9 | 000016305P04 | COLLAR Locking |
| 10 | 006511674V1 | OIL SEAL PTO OUTPUT SHAFT 34.9X60X19.5-S |
| 11 | 006512604U1 | OUTPUT SHAFT 4WD |
| 12 | 006505608D1 | BEARING BALL 40 X 90 X 23 |
| 13 | 006512237U1 | END COVER OPEN 4WD-MSTAR |
| 14 | 000020309E05 | BOLT Flanged Hex. Head M8 x 25 |
| 15 | 006512606U1 | DROP BOX HOUSING 4WD |
| 16 | 006512238U1 | END COVER CLOSED 4WD-MSTAR |
| 17 | 000016299P04 | BEARING Ball 35 x 80 x 21 |
| 18 | 006505490D1 | SHIM MAIN SHAFT ,TOP,SPEED SECTION |
| 18 | 006505491D1 | SHIM MAIN SHAFT,TOP,SPEED SECTION |
| 18 | 006505492D1 | SHIM MAIN SHAFT TOP SHAFT SPEED SECTION |
| 19 | 000016293P04 | BALL Steel 1/4 |
| 20 | 000016300P04 | SPRING |
| 21 | 000016304P04 | CHOCK Block |
| 22 | 000016322P04 | PLATE Locking 4WD |
| 23 | 000016303P04 | ARM |
| 24 | 000016321P04 | WASHER Sealing Drop Box |
| 25 | 001082228R92 | OIL SEAL (PTO SHIFTER) |
| 26 | 006513814V1 | COMPOUND ROLL PIN 8X30 |
| 27 | 005556422R2 | MAGNETIC Drain Plug |
| 28 | 000016310P04 | LOCTION Sleeve |
| 29 | 000016469P04 | BOLT M10 x 1.5 x 35L |
| 30 | 000020281E05 | PIN Dowel 8.0 M6 x 18 DIN 7 |
