Modelo 60754WD

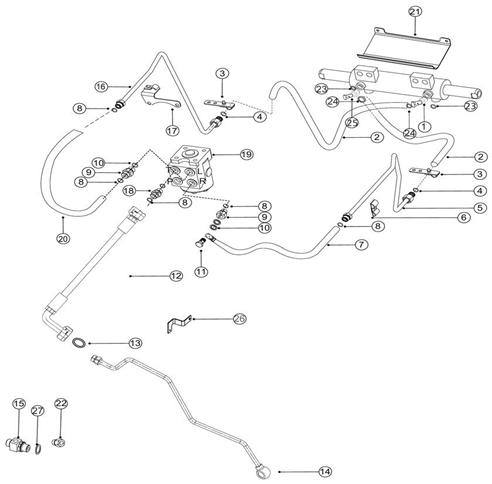

Diagrama Power Steering Pipe
| 1 | 007208893C1 | ADAPTOR M14 X 1.5 |
| 2 | 007208200C91 | HOSE STEERING CYLINDER LH and RH |
| 3 | 007206993C91 | BRACKET Power Steering Pipe |
| 4 | 007205518C1 | O RING |
| 5 | 007206896C91 | PIPE HSU Steering RH |
| 6 | 007201579D1 | CLAMP Pipe |
| 7 | 007207049C1 | HOSE WITH BANJO BOLT M14 X 13/16-16 UN |
| 8 | 007205518C1 | O RING |
| 9 | 007205537C1 | CONNECTOR Male Stud |
| 10 | 007205510C1 | RING O 15.3 X 2.2 |
| 11 | 001232932R1 | BOLT BANJO M14X1.5X26 |
| 12 | 007208710C91 | HOSE RETURN LINE |
| 13 | 007205518C1 | O RING |
| 14 | 007208875C91 | PIPE RETURN LINE REAR HSG END ASSY |
| 15 | 007208496C91 | ADJUSTABLE BULK HEAD UNION |
| 16 | 007206895C91 | PIPE HSU Steering LH |
| 17 | 007206903C11 | BRACKET Power Steering Pipe Lh |
| 18 | 007205537C1 | CONNECTOR Male Stud |
| 19 | 007210014U1 | HYDRAULICS Steering Unit (HSU) |
| 20 | 007206901C91 | HOSE Power steering L Port |
| 22 | 007207495C1 | CONNECTOR M20XM20 |
| 23 | 006509850C1 | O-RING |
| 24 | 007207053C1 | BONDED SEAL M14 |
| 25 | 001232932R1 | BOLT BANJO M14X1.5X26 |
| 26 | 007208586C91 | BRACKET PIPE RETURN LINE ASSY |
| 27 | E007204866D1 | WASHER Dowty M20 |
| * | 007201608D1 | PLATE Clamp |
