Modelo 60754WD

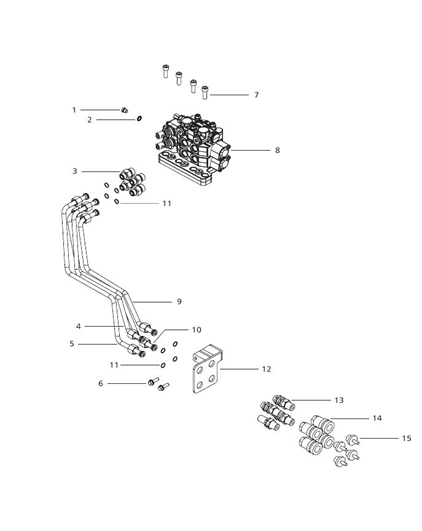

Diagrama Double Spool Auxiliary Valve
| 1 | 007205006C1 | PLUG Ml0 X L.5 |
| 2 | 007205007C1 | WASHER Dowty Ml0 |
| 3 | 007206994C1 | MALE Stud Coupling M22x1.5 |
| 4 | 007209695C91 | PIPE Aux. Valve Port “ 2B |
| 5 | 007209694C91 | PIPE Aux. Valve Port “ 2A |
| 6 | 000020309E05 | BOLT Flanged Hex. Head M8 x 25 |
| 7 | 007205397B1 | SCREW Allen M10 X 1.5 X35 |
| 8 | 007209385C91 | AUXILARY VALVE Double Spool |
| 9 | 007209697C91 | PIPE Aux. Valve Port - 1B |
| 10 | 007209696C91 | PIPE Aux. Valve Port “ 1A |
| 11 | 007205518C1 | O RING |
| 12 | 007206831C1 | BRACKET QDC Mounting |
| 13 | 007206995C1 | BULK Head Union 13/16-16 Un X 1/2 Nptf |
| 14 | 000051684D01 | QDC Female Nptf |
| 15 | 007200874C1 | QDC End Cap |
