Modelo 60754WD

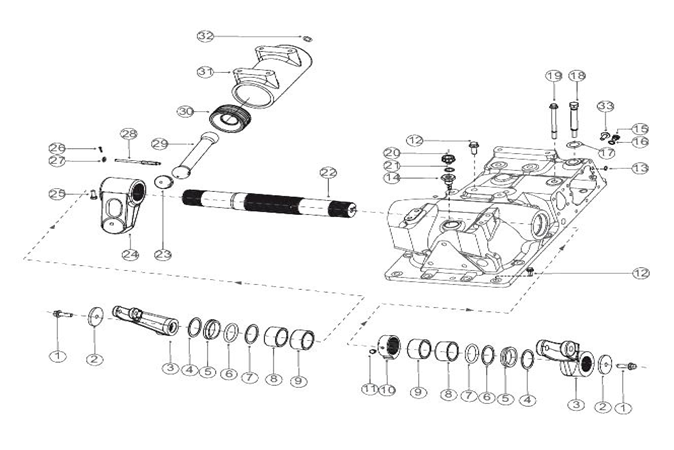

Diagrama Lift Arm Assembly - Part A
| 1 | 000016469P04 | BOLT M10 x 1.5 x 35L |
| 2 | 000708922R3 | PLATE Lift Arm Retaining |
| 3 | 007205405C1 | ARM Lift Hydraulics 50-75 HP |
| 4 | 007208715V1 | SPACER Lift Arm |
| 5 | 003044372R1 | WASHER Rockshaft |
| 6 | 007207489C1 | OIL Seal Rockshaft |
| 7 | 007207488C1 | O-RING Dia 56 x 7.5 mm |
| 8 | 001231718R1 | BUSH (Sleeve) Rockshaft |
| 9 | 007205736C1 | BUSH (Sleeve) Rockshaft |
| 10 | 007204632C1 | CAM Sintred Uniplatform |
| 11 | 007205866C1 | BOLT PC Cam |
| 12 | 000013898P04 | BOLT M12 x 1.74 x 40 |
| 13 | 003067183R1 | O - RING 7/16 x 5/8 3/32 |
| 14 | 007206258C11 | ADAPTOR Assy. For Breather |
| 15 | 007205248C1 | BANJO Washer |
| 16 | 007205590C1 | PLUG M12x1.5 |
| 17 | 007205755C1 | WASHER Rubber |
| 18 | 007205750C1 | BOLT VTU Mounting |
| 19 | 007205763C1 | BOLT M12X1.75X163 |
| 20 | 006503363D1 | BREATHER Shuttle |
| 21 | 005556339R1 | WASHER Breather |
| 22 | 007204630C1 | ROCKSHAFT Hydraulic |
| 23 | 003046977R2 | BUSH Connecting Rod |
| 24 | 007209683C1 | ARM Rocker Hydraulic |
| 25 | 001231563R1 | BOLT Rocker Arm 3/8 UNF x 1 x 1/8 |
| 26 | 000103374 | PIN Cotter 3/32 X 1 |
| 27 | 000120393 | WASHER Plain |
| 28 | 007204641C1 | PIN Rocker Arm |
| 29 | 007205681C1 | ROD Connecting |
| 30 | 007206523C91 | PISTON Assembly 105 mm Bore |
| 31 | 007204858C1 | CYLINDER Hydraulic Lift Unit |
| 32 | 007204955C1 | O RING |
| 33 | 007206788C1 | BOLT M10 x 1.5 x 28 |
