Modelo 60754WD

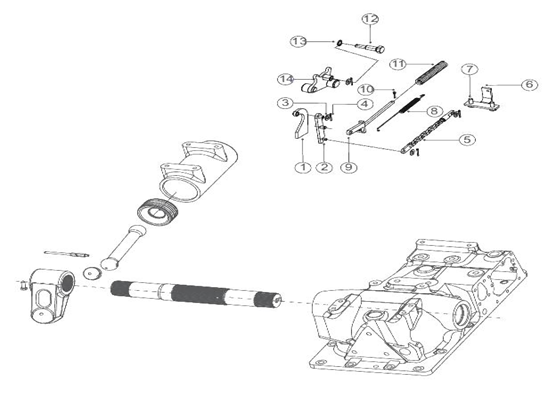

Diagrama Lift Arm Assembly - Part B
| 1 | 007204705C11 | LINK Actuating Pc Cpte. |
| 2 | 007204703C11 | DC Actuating Link Cpt. |
| 3 | 000120393 | WASHER Plain |
| 4 | 000103384 | PIN Cotter 1/8 x 3/4 Long |
| 5 | 007206080C91 | CHAIN Safety Dc |
| 6 | 007205315C11 | COVER Bottom Plate |
| 7 | 001081607R1 | BOLT M8 x 1.25 - 20 Long |
| 8 | 007205821C1 | SPRING Draft Return Link |
| 9 | 007205081C11 | LINK Draft Cpte |
| 10 | 007207326C1 | PIN Cotter 5/32 -1 1/2 |
| 11 | 007205187C1 | SPRING Dc Feedback |
| 12 | 007204636C1 | BOLT Pivot |
| 13 | 007205248C1 | BANJO Washer |
| 14 | 007207607V11 | ROLLER Link PC CPTE |
