Modelo 60754WD

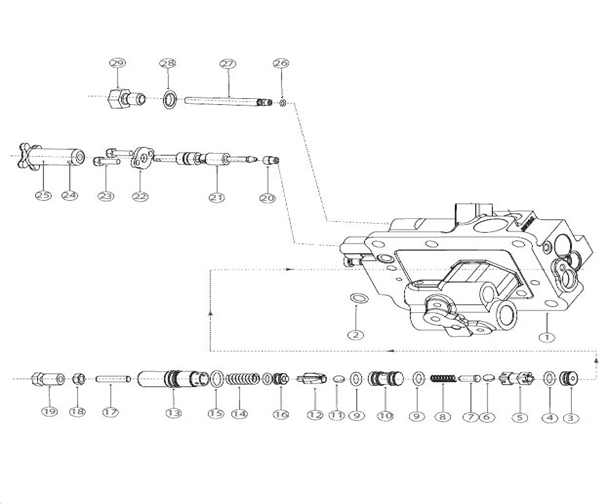

Diagrama Control Valve Assembly - Part A
| 1 | 007207259C91 | Assy. Manifold Control Valve with Sleeve |
| 2 | 003067183R1 | O - RING 7/16 x 5/8 3/32 |
| 3 | 007205598C1 | SEAT Check Valve |
| 4 | 000377952R1 | O - RING |
| 5 | 007206849C1 | SLEEVE Ball Non Return Valve |
| 6 | 003072883R1 | BALL 3/8 Relief Valve |
| 7 | 003063495R1 | RIDER Non Return Valve |
| 8 | 003074227R2 | SPRING Non Return Valve |
| 9 | 000377952R1 | O - RING |
| 10 | 007207857C1 | SEAT Shock Load Rv |
| 11 | 003072883R1 | BALL 3/8 Relief Valve |
| 12 | 007207861C1 | RIDER Relief Valve Ball |
| 13 | 007206218C1 | ADJUSTABLE Housing Shock Load Rv |
| 14 | 007207746C1 | SPRING Shock Load Rv |
| 15 | 003067183R1 | O - RING 7/16 x 5/8 3/32 |
| 16 | 007204994C1 | SPACER Rv |
| 17 | 007202853C1 | SCREW Grab M8 x 1.25 x 25 Adjustable |
| 18 | 007202851C1 | NUT Relief Valve M8 x 1.25 |
| 19 | 007206206C1 | DOME Nut Relief Valve |
| 20 | 007206618C1 | SEAT Isolating Valve |
| 21 | 007206793C91 | LOWERING Speed Control Valve |
| 22 | 007206222C1 | PLATE Isolating Valve |
| 23 | 000180018 | HEX. Head 1/4 |
| 24 | 007206800C1 | ISOLATOR Valve Knob |
| 25 | 000017047R1 | PIN Slotted |
| 26 | 000384937R1 | O - RING 1/4 x 3/8 x 1/16 |
| 27 | 003047294R95 | ORIFICE Assembly |
| 28 | 003045118R1 | WASHER 5/8 Diameter |
| 29 | 000751580R3 | BOLT Needle Valve Cover |
| * | 007212590U91 | ASSEMBLY Control Valve |
