Modelo 60754WD

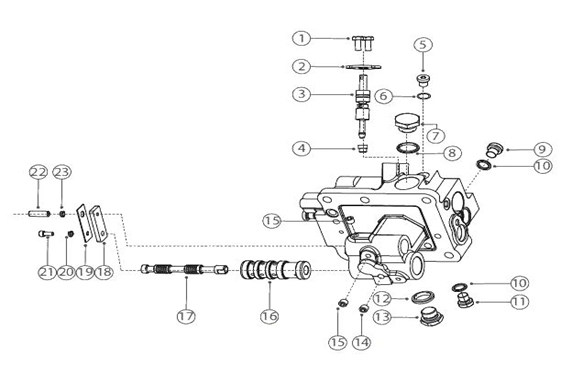

Diagrama Control Valve Assembly - Part B
| 1 | 000180018 | HEX. Head 1/4 |
| 2 | 007206222C1 | PLATE Isolating Valve |
| 3 | 007206793C91 | LOWERING Speed Control Valve |
| 4 | 007206618C1 | SEAT Isolating Valve |
| 5 | 007205006C1 | PLUG Ml0 X L.5 |
| 6 | 007205007C1 | WASHER Dowty Ml0 |
| 7 | 005558124R1 | PLUG 1/2 BSP Tapping Auxiliary |
| 8 | 000704337R1 | WASHER Dowty |
| 9 | 007205590C1 | PLUG M12x1.5 |
| 10 | 007205248C1 | BANJO Washer |
| 11 | 000352026R2 | SPRING Flow Control Valve Ball |
| 12 | 007206997C1 | SEAL Bonded M18 |
| 13 | 007205033C1 | PLUG M18 X L.5 |
| 14 | 000444687 | PLUG 1/8 NPTF |
| 15 | 007206194C1 | PLUG 1/8 - 27 Nptf With 2 Mm Drill |
| 16 | 007204956C1 | SLEEVE Control Valve |
| 17 | 007204976C1 | SPOOL Control Valve |
| 18 | 007206175C1 | PLATE Lowering M8 |
| 19 | 007204930C1 | LOCK Plate Lowering Spool |
| 20 | 005555976R1 | WASHER Spring M5 |
| 21 | 000051038D01 | ALLEN Screw M5x12mm |
| 22 | 007206190C1 | GRUB Screw M8 X 1 X 25 |
| 23 | 007202851C1 | NUT Relief Valve M8 x 1.25 |
