Modelo 60754WD

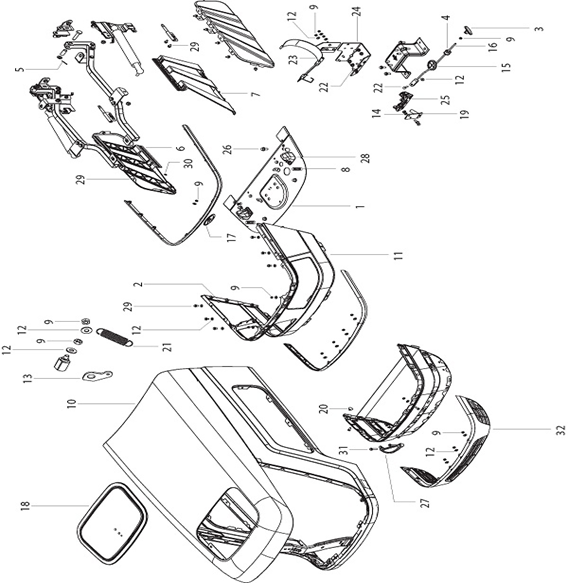

Diagrama Hood Assembly - Part A
| 1 | 007611308C91 | FAS PLATE Assembly |
| 2 | 007535336R1 | BUSH Battery Mudguard |
| 3 | 007640534U91 | KNOB Latch Assembly |
| 4 | 007640833U1 | RUBBER SLEEVE Latch Operating Rod |
| 5 | 000103374 | PIN Cotter 3/32 X 1 |
| 6 | 007636146U91 | SIDE GRILL ADD ON Assy RH |
| 7 | 007636145U91 | SIDE GRILL ADD ON Assy LH |
| 8 | 007501624C1 | STOPPER Rubber bonnet |
| 9 | 001233807R1 | NUT M6 x 1 Hex. |
| 10 | E007502234C91 | HOOD ASSEMBLY Complete |
| 11 | 007637333U91 | FRONT GRILL TOP Assembly |
| 12 | 007515212D1 | WASHER Plain 6.5X15X1.5 |
| 13 | 006511351U1 | PLATE Differential External Spring Mounting |
| 14 | 005553017R1 | NUT M8 x 1.25 |
| 15 | 007638377U1 | GROMMET Latch Rubber |
| 16 | 007640531U91 | LATCH OPERATING ROD |
| 17 | 007505310C1 | LOGO For Front Grill |
| 18 | 007636451B1 | PERFORATED GRILL Top Panel |
| 19 | 007641457U11 | BRACKET ASSEMBLY Latch Pin Support |
| 20 | 007502206C1 | CLIP Christmas Tree |
| 21 | 007601791D1 | SPRING Parking Lever |
| 22 | 000020312E05 | BOLT M6x20 |
| 23 | 007638053U11 | BRACKET Air Cleaner Mounting |
| 24 | 007639001U11 | BRACKET Latch Support |
| 25 | 007542072C94 | BRACKET Latch Support Assembly |
| 26 | 000020565E05 | BOLT Flanged Hex Head M10 x 1.5 x 20 |
| 27 | 007636627U1 | HOOD HANDLE |
| 28 | 007501597C1 | HOOD Front locator Pad Nylon |
| 29 | 000020797E05 | BOLT M6 |
| 30 | 007500878B1 | WASHER Star M5 x 8 |
| 31 | 000020818E05 | BOLT Flanged M6 x 30 Full Threaded |
| 32 | 007636140U1 | FRONT GRILL ADD ON Bottom |
