Modelo 60754WD

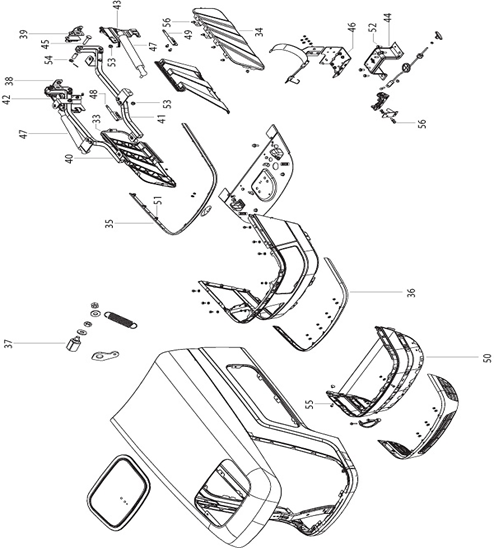

Diagrama Hood Assembly - Part B
| 33 | 007637177U1 | HOOD SIDE GRILL RH |
| 34 | 007637176U1 | HOOD SIDE GRILL LH |
| 35 | 007636134U91 | FRONT GRILL ADD ON Top Assy |
| 36 | 007636137U1 | FRONT GRILL ADD ON Middle |
| 37 | 007544257C1 | BUSH ROPE Mounting - Bonnet |
| 38 | 007543831C91 | HINGE Fixed assy RH |
| 39 | 007543830C91 | HINGE Fixed assy LH |
| 40 | 007543829C91 | HINGE assy RH |
| 41 | 007543821C91 | HINGE assy LH |
| 42 | 007543589C91 | MTG Assy Gas Spring RH |
| 43 | 007543588C91 | MTG Assy Gas Spring LH |
| 44 | 007542004C91 | BRACKET Latch bottom support assly |
| 45 | 008007990D1 | PIN Hinge |
| 46 | 000020777E05 | NUT Flanged M8 |
| 47 | E007545486C91 | GAS SPRING Assembly |
| 48 | 007501513C91 | GUIDE Hood rear locater assly RH |
| 49 | 007501512C91 | GUIDE Hood rear locater assly LH |
| 50 | 007501500C92 | GRILL Front bottom assly |
| 51 | 006008869B1 | BOLT Hex M6X10 |
| 52 | 000020307E05 | BOLT M8 x 20 |
| 53 | 001231889R1 | NUTS Nylock M10 |
| 54 | 000060687M01 | WASHER Plain M12 |
| 55 | 000060434M01 | BOLT M6 |
| 56 | SF0202257 | SCREW Hex. Fl. M6 x 1 x 12 x 8.8 |
| * | 007542085C1 | BEADING Rubber Bonnet Front |
| * | 007544090C1 | HEAD Lamp for M-Star |
| * | SF0404009 | WASHER Tooth M4 x 12 x 0.2 |
| * | 007543740C1 | BONNET Rope |
| * | 007644269U1 | PLATE Hood Latch Guide |
| * | 006003914H1 | NUT Flange Hex M10 |
| * | 007500878B1 | WASHER Star M5 x 8 |
| * | E007702629H1 | Bracket Wiring Harness for 7mm Diameter Clip |
