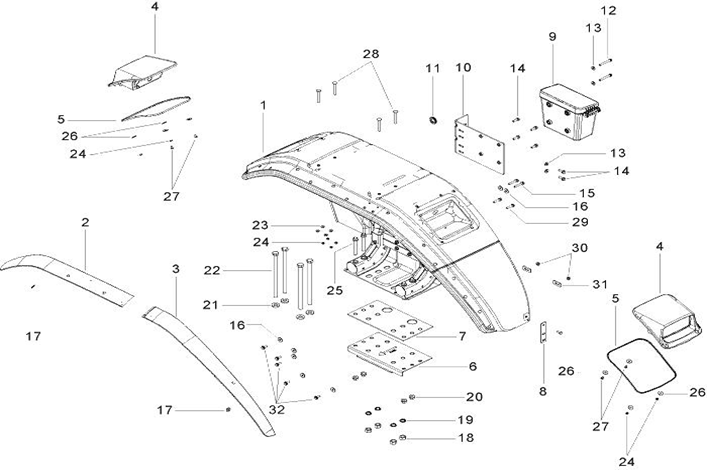

Modelo 60754WD Diagrama Fender Assembly RH

1	007636964U91	Fender Assembly RH
2	007636117U1	ADD ON Fender Rear RH
3	007636119U1	ADD ON Fender Front RH
4	007545406C91	PNT Lamp Housing
5	007532068C1	BEEDING Rubber PNT Lamp Housing
6	007541691C91	SPACER
7	007542061C1	PAD Fender mtg
8	007544138C1	FENDER Support Plate
9	007542089C91	ASSY Utility box
10	007643700U91	BRACKET Utility Box Mounting
11	000060865M01	BUSH Rubber Pin Latch
12	000020792E05	BOLT Hex. FL M8X1.25X70.7X8.8
13	007535860D1	WASHER Plain 8.5 x 19 x 3
14	000020309E05	BOLT Flanged Hex. Head M8 x 25
15	000020254E05	BOLT Flanged Hex. Head M8 x 1.25 x 45
16	000020739E05	WASHER Plain
17	007538856C1	WASHER Sping Lock
18	000012653P04	NUT M16 x 2
19	005556521R1	WASHER Spring M16 x 27.4 x 3.5
20	007535360D1	NUT Hex Flange (Class 8)
21	001099817R1	WASHER Plain
22	007542631V1	BOLT M16 x 160
23	007515212D1	WASHER Plain 6.5X15X1.5
24	001233807R1	NUT M6 x 1 Hex.
25	006506437D1	BOLT Hex FL M12 x 1.75 x 95
26	003047325R1	WASHER Governor Control
27	006008869B1	BOLT Hex M6X10
28	007532047C1	BOLT Carriage M8 x 75
29	000020253E05	BOLT Flanged Hex. Head M8 x 1.25 x 35
30	000020777E05	NUT Flanged M8
31	000061345M01	RUBBER Pad for Floor Panel
32	000020307E05	BOLT M8 x 20
