Modelo 60754WD

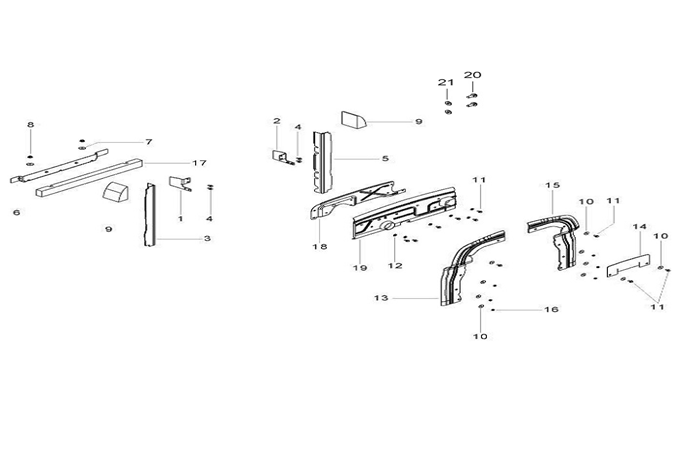

Diagrama Sealing Assembly
| 1 | 007643292U11 | BRACKET Radiator Side Sealing LH |
| 2 | 007643297U11 | BRACKET Radiator Side Sealing RH |
| 3 | 007643298U91 | BRACKET Bonnet Side Sealing LH |
| 4 | 000020797E05 | BOLT M6 |
| 5 | 007643299U91 | BRACKET Bonnet Side Sealing RH |
| 6 | 007542182C1 | FOAM Plate |
| 7 | 000020739E05 | WASHER Plain |
| 8 | 000020777E05 | NUT Flanged M8 |
| 9 | 007636990U1 | FOAM Radiator Top Side Sealing |
| 10 | 003047325R1 | WASHER Governor Control |
| 11 | 000020312E05 | BOLT M6x20 |
| 12 | 007515212D1 | WASHER Plain 6.5X15X1.5 |
| 13 | 007543267C1 | RUBBER Sealing Firewall LH |
| 14 | E007702564C91 | HEAD LAMP RH |
| 15 | 007543268C2 | RUBBER Sealing Firewall RH |
| 16 | 001233807R1 | NUT M6 x 1 Hex. |
| 17 | 007542084C1 | FOAM Radiator Bottom Sealing |
| 18 | 007543580C91 | BRACKET Assy Radiatpr top Sealing Rubber Support |
| 19 | 007635674C1 | SEALING Rubber Radiator Top |
| 20 | 000020307E05 | BOLT M8 x 20 |
| 21 | 008008691C1 | WASHER Plain G8.5 x 20 x 2 |
