Modelo 60754WD

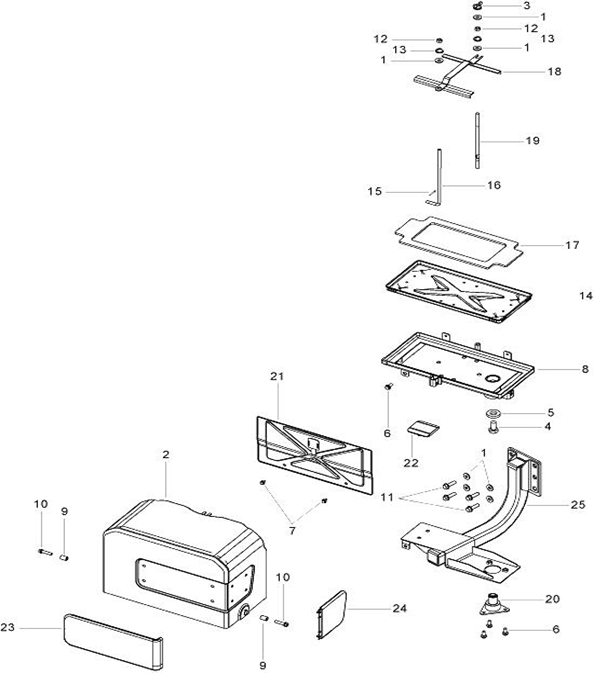

Diagrama Battery Mounting Assembly
| 1 | 000030184R1 | WASHER Plain M10 |
| 2 | 007609701C91 | BATTERY BOX ASSEMBLY COMPLETE |
| 3 | 001231333R91 | NUT Wing |
| 4 | 007535365D1 | BOLT M12 x 25 Hex. |
| 5 | 001099817R1 | WASHER Plain |
| 6 | 000020307E05 | BOLT M8 x 20 |
| 7 | 000020797E05 | BOLT M6 |
| 8 | 007636764U91 | TRAY Battery Support |
| 9 | 007541940C1 | SLEEVE PIVOT |
| 10 | 000020253E05 | BOLT Flanged Hex. Head M8 x 1.25 x 35 |
| 11 | 000020314E05 | BOLT M10 x 35 |
| 12 | 000120377 | NUT 3/8 UNC Plated |
| 13 | 001082360R3 | WASHER SPRING |
| 14 | 007541431C2 | TRAY BATTERY |
| 15 | 000103373 | PIN Cotter 3/32 X 3/4 |
| 16 | 008000630A1 | STUD Battery Mounting |
| 17 | 007541533C1 | PAD BATTERY |
| 18 | 007541432C91 | CLAMP BATTERY |
| 19 | 008000171B1 | STUD BATTERY HOLDING |
| 20 | 007530835D92 | PIN Swivel |
| 21 | 007541923C91 | MUDGUARD PLATE ASSEMBLY |
| 22 | 007636533U1 | SPACER Fixed Battery Sliding |
| 23 | 007541929C1 | COVER Battery add on |
| 24 | 007542363C1 | COVER Battery Side Cladding |
| 25 | 007636692U91 | BRACKET Battery Mounting |
