Modelo 60754WD

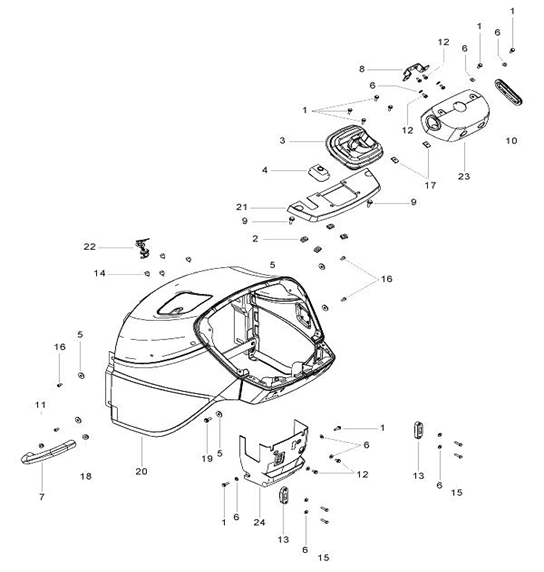

Diagrama Scuttle Assembly
| 1 | 000020312E05 | BOLT M6x20 |
| 2 | 007637916U91 | CLIP Assembly |
| 3 | 007640552U91 | BELLOW Cover Steering Rubber |
| 4 | E007610660C1 | BELLOW F-R |
| 5 | 000020739E05 | WASHER Plain |
| 6 | 007515212D1 | WASHER Plain 6.5X15X1.5 |
| 7 | 007543566C1 | HAND Hold Scuttle |
| 8 | 007506010C91 | COMBINATION Cover Mtg. Bkt. |
| 9 | 007535368D1 | SCREW M6 x 1 x 16 |
| 10 | 007544208C1 | BELLOW Hand Accelerator |
| 11 | 000020777E05 | NUT Flanged M8 |
| 12 | 000020797E05 | BOLT M6 |
| 13 | 007505818C1 | SPACER Hood Guide Nylon |
| 14 | 000060405M01 | RUBBER Door Fuel Filler |
| 15 | 000061046M01 | BOLT M6 x 20 Hex. |
| 16 | 000060387M01 | BOLT M8 x 16 |
| 17 | 007500378D91 | CLIP Mounting |
| 18 | 006003914H1 | NUT Flange Hex M10 |
| 19 | 000020307E05 | BOLT M8 x 20 |
| 20 | 007505804C92 | SCUTTLE Assly Complete |
| 21 | 007506021C91 | COVER Scuttle Extension |
| 22 | 007611249C1 | Lock and Key |
| 23 | 007544125C91 | COVER Steering Assembly |
| 24 | 007636712U91 | COVER Steering Bottom |
