Modelo 60754WD

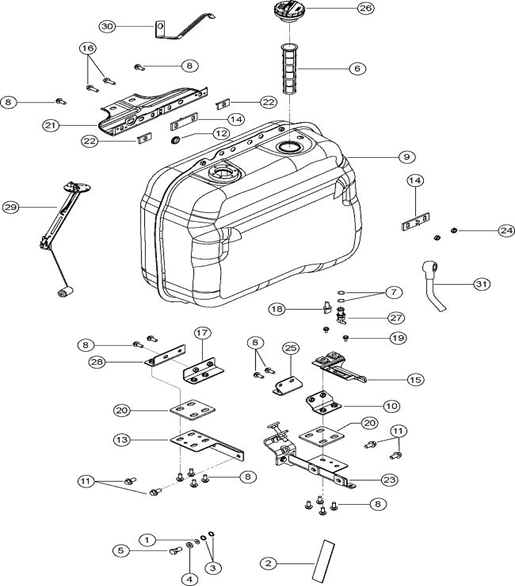

Diagrama Fuel Tank Assembly
| 1 | 000120393 | WASHER Plain |
| 2 | 007545378C1 | PAD Rubber Bottom |
| 3 | 000020695E05 | WASHER Plain M12 |
| 4 | 001121752R3 | WASHER Rubber |
| 5 | 006000331F1 | BANJO BOLT M12 - Rotary FIP |
| 6 | 007515569C1 | STRAINER Fuel Tank |
| 7 | 001121836R1 | WASHER Copper for Tap |
| 8 | 000020307E05 | BOLT M8 x 20 |
| 9 | 007515824C91 | TANK Fuel |
| 10 | 007515857C91 | BRACKET Fuel Tank Bottom Rear LH |
| 11 | 000020565E05 | BOLT Flanged Hex Head M10 x 1.5 x 20 |
| 12 | 000061198M01 | GROMMET Rubber for Plough Lamp Cable |
| 13 | 007515825C91 | BRACKET Fuel Tank Bottom Support RH |
| 14 | 007635884U1 | PAD Rubber Top Middle |
| 15 | 007545378C1 | PAD Rubber Bottom |
| 16 | 000020309E05 | BOLT Flanged Hex. Head M8 x 25 |
| 17 | 007515847C91 | BRACKET Fuel Tank Mounting Bottom Front RH |
| 18 | 001127926R1 | BOLT Wing Water Drain |
| 19 | 000020797E05 | BOLT M6 |
| 20 | 007515868C1 | PAD Rubber Bottom |
| 21 | 007515871C91 | BRACKET Fuel Tank Mounting Top Front |
| 22 | 007635885U1 | PAD Rubber Top |
| 23 | 007641068U91 | BRACKET Fuel Tank Bottom Support LH |
| 24 | 007637904U91 | BRACKET Fuel Tank Top Mounting Rear |
| 25 | 007515856C91 | BRACKET Fuel Tank Bottom Mounting Front LH |
| 26 | 007515769C91 | CAP Fuel Tank Assy |
| 27 | 001233066R93 | TAP Complete Fuel |
| 28 | 007515848C91 | BRACKET Fuel Tank Bottom Mounting Rear RH |
| 29 | 007703346C91 | SENSOR Fuel Level |
| 30 | E007702564C91 | HEAD LAMP RH |
| 31 | 006025484C1 | PIPE Banjo Fuel Cock End |
| * | 001121752R2 | WASHER Rubber |
| * | 007640906V2 | GASKET Fuel Level Sensor |
