Modelo 60754WD

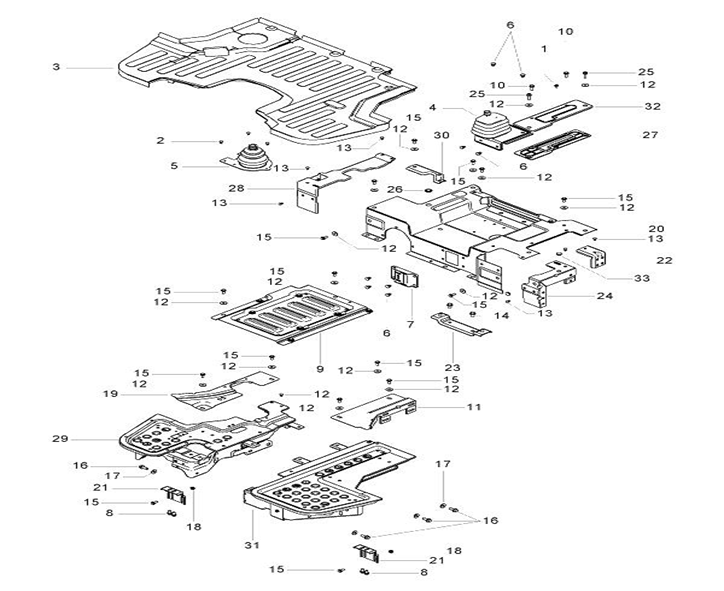

Diagrama Floor Panel Assembly
| 1 | 000020797E05 | BOLT M6 |
| 2 | 007502206C1 | CLIP Christmas Tree |
| 3 | 007542062C1 | FLOOR MAT |
| 4 | 007641038U91 | BELLOW Hi-low Lever |
| 5 | 007542130C1 | BELLOW Gear Shifter |
| 6 | 007535100C1 | PLUG 10.5 Dia |
| 7 | 007545080C1 | 4WD CUT OUT COVER |
| 8 | 000020308E05 | BOLT M8 x 16 |
| 9 | 007643750U91 | FLOOR Assy middle |
| 10 | 000020309E05 | BOLT Flanged Hex. Head M8 x 25 |
| 11 | 007643931U91 | EXT Floor Panel LH |
| 12 | 000020739E05 | WASHER Plain |
| 13 | 007600077C1 | PLUG Plastic |
| 14 | 000020565E05 | BOLT Flanged Hex Head M10 x 1.5 x 20 |
| 15 | 000020307E05 | BOLT M8 x 20 |
| 16 | 000020313E05 | BOLT Flanged Hex. Head M10 x 1.5 x 25 |
| 17 | 000030184R1 | WASHER Plain M10 |
| 18 | 000020777E05 | NUT Flanged M8 |
| 19 | 007643933U91 | BRACKET Floor Panel Extension RH |
| 20 | E007545202C91 | PANEL Floor Main Rear |
| 21 | 007643930U1 | BRACKET Connecting Floor Panel and Fender |
| 22 | 007541875C92 | FLOOR Rear ext. Rear LH Assly |
| 23 | 007542135C91 | BRACKET Rear Floor VTU Mounting Assy |
| 24 | 007541873C92 | FLOOR Rear ext. Front LH assly |
| 25 | 000020306E05 | BOLT Flanged - M8 x 1.25 x 30 |
| 26 | 000061198M01 | GROMMET Rubber for Plough Lamp Cable |
| 27 | 007541490C1 | COVER plastic SLIPTO Cover |
| 28 | 007541876C92 | FLOOR Rear ext. assly RH |
| 29 | 007541847C93 | FLOOR PANEL RH |
| 30 | 007541967C91 | FLOOR Rear connecting bkt. RH rear assly |
| 31 | 007543909C91 | FLOOR Panel Assly LH |
| 32 | 007541496C1 | COVER SLIPTO |
| 33 | 007542129C1 | GROMMET For Rear Floor Ext. |
| * | 007700625B1 | TIE Cable |
