Modelo 60754WD

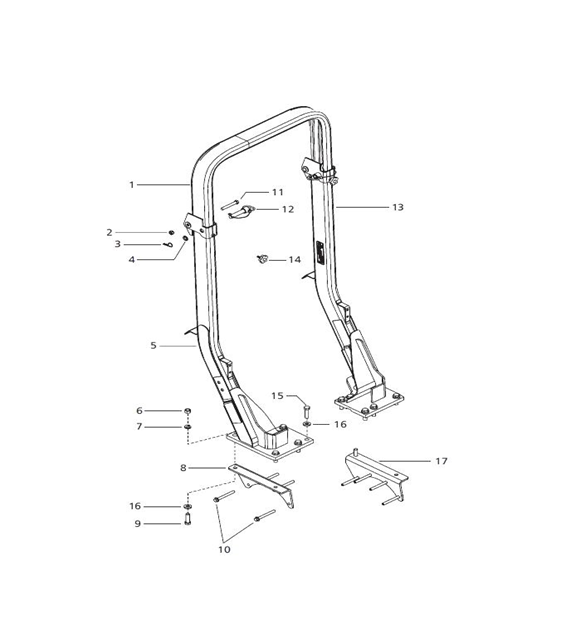

Diagrama ROPS
| 1 | 007635816C91 | ROPS Top Assembly |
| 2 | 008008754B1 | NUT Hex. G12.7 x 1.95 x 11.5 |
| 3 | 008008751B1 | COTTER Spring |
| 4 | 000061198M01 | GROMMET Rubber for Plough Lamp Cable |
| 5 | 007635808C91 | SIDE BAR Assembly RH ROPS |
| 6 | SF0301180 | NUT Hex. M16 x 2.0 x 13 x 10 |
| 7 | 008008740C1 | WASHER Spring Lock G15.875 |
| 8 | 007518700C92 | BRACKET Mounting ROPS RH |
| 9 | 007637681U1 | BOLT Hex. M16x2x55x12.9 |
| 10 | 007519502C1 | BOLT Hex. Fl. M12x1.75x110x10.9 |
| 11 | 008008137B1 | BOLT Hex. G12.7 x 1.95 x 88.9 x 8.8 |
| 12 | 008007990D1 | PIN Hinge |
| 13 | 007635806C91 | SIDE BAR Assembly LH ROPS |
| 14 | 007517053C1 | KNOB ROPS |
| 15 | 007637682U1 | BOLT Hex. M16x2x60x12.9 |
| 16 | SF0401223 | WASHER Plain G16.66 x 33.32 x 6.35 |
| 17 | 007518699C92 | BRACKET Mounting ROPS LH |
| * | 007517079C1 | STICKER for ROPS |
