Modelo 60754WD

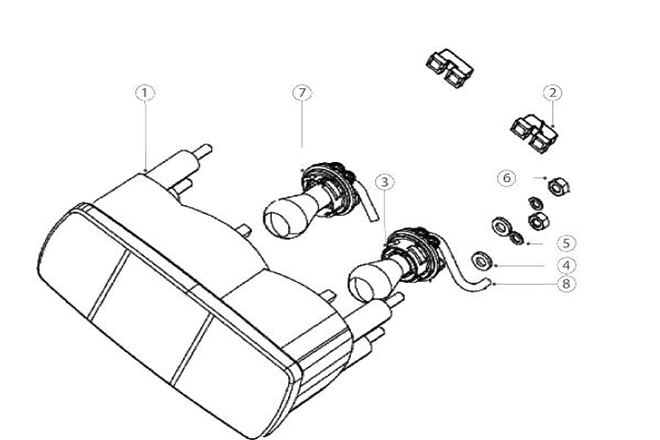

Diagrama Fender Lamp And Combination Lamp
| 1 | 007701410C91 | LAMP PT RH |
| 1 | 007701413C91 | LAMP Combination RH |
| 2 | ¡ | Not Serviceable Separately |
| 2 | ¡ | Not Serviceable Separately |
| 3 | 001233974R91 | BULB 12V, 5 W |
| 3 | 001233974R91 | BULB 12V, 5 W |
| 4 | 007701899C1 | WASHER Plain |
| 4 | 007701899C1 | WASHER Plain |
| 5 | 007701900C1 | WASHER Spring |
| 5 | 007701900C1 | WASHER Spring |
| 6 | 007701901C1 | NUT Hex. |
| 6 | 007701901C1 | NUT Hex. |
| 7 | 005553847R91 | BULB 12V-21/5W FTS Lamp |
| 7 | 005556523R91 | BULB Parking 12 V, 5 W |
| 8 | ¡ | Not Serviceable Separately |
| 8 | ¡ | Not Serviceable Separately |
| * | 007701411C91 | LAMP P T LH |
| * | 007701412C91 | LAMP Combination LH |
