Modelo
60754WD

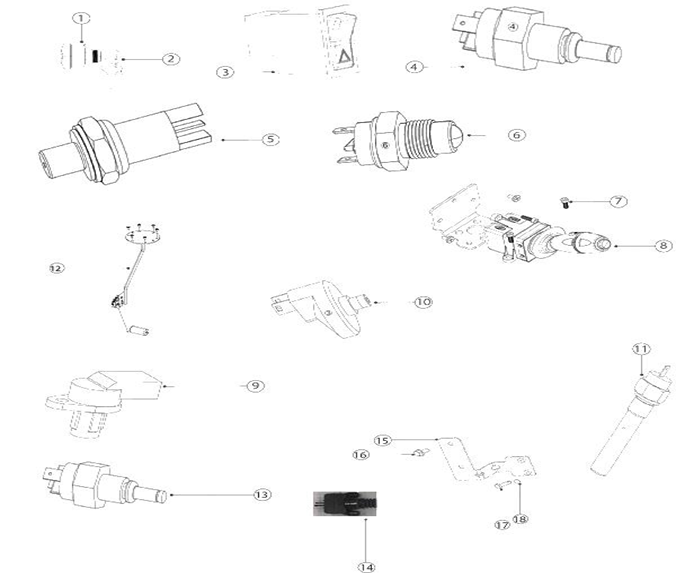

Diagrama Switches And Sensors
| 1 |
007701402C92 |
SWITCH Starter key |
| 2 |
006015681C91 |
KEY |
| 3 |
005558699R92 |
SWITCH Hazard Warning |
| 4 |
007701838C91 |
SWITCH Brake Light |
| 5 |
000013085P05 |
SWITCH Oil Pressure |
| 6 |
007701839C91 |
NEUTAL Switch Nc With Pigtail |
| 7 |
000013345P04 |
BOLT Allen M6 x 16 |
| 8 |
007701400C92 |
SWITCH Combination |
| 9 |
E007701298D91 |
SENSOR Phase |
| 10 |
007700271C2 |
CLOG INDICATOR |
| 11 |
005551426R2 |
SENSOR Temperature Unit |
| 12 |
007703346C91 |
SENSOR Fuel Level |
| 13 |
007701838C91 |
SWITCH Brake Light |
| 14 |
000013058P05 |
SWITCH PTO |
| 15 |
007703239C91 |
BRACKET Mtg. PTO Switch |
| 16 |
000020565E05 |
BOLT Flanged Hex Head M10 x 1.5 x 20 |
| 17 |
007535626C1 |
BOLT M4 x 20 |
| 18 |
000060809M01 |
WASHER Spring Lock M4 |
| * |
005555975R1 |
BOLT Hex M5 |
| * |
005559255B1 |
BRACKET Maxifuse Mounting |
| * |
000050684D99 |
WASHER Plain 16.50 X 30 X 2 |
| * |
000061184M01 |
WASHER Plain M4 |
| * |
007640906V2 |
GASKET Fuel Level Sensor |
| * |
006028901U1 |
SENSOR Throttle Position |
